#freecadfriday

It's #FreeCADFriday and over in Belgium we are hosting #FreeCADDay but tell us what you are working on with #FreeCAD! #CAD #CAM

It's #FreeCADFriday! Hope you wonderful people have an amazing weekend. In the meantime, what are you all working on with #FreeCAD? #CAD

@freecad@social.freecad.org A late Friday entry! I've designed a parameterized case for the BC-250 mining/gaming rig that's mostly done. https://www.printables.com/model/1846570-uglycase #3dprinting #bc250 #freecadfriday

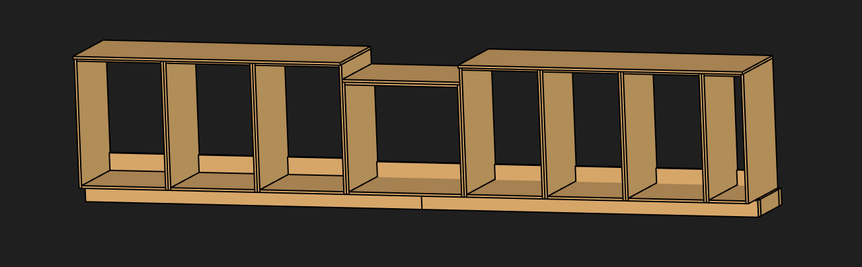

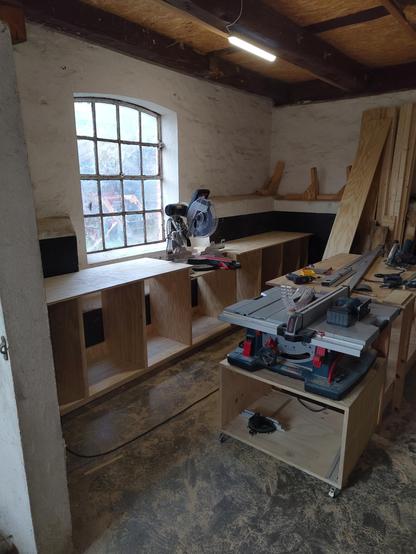

For #FreeCADFriday my new workshop Miter station. I love being able to model everything before actually building it to make sure that everything works the way I think in my head. Also getting cutlists from the model and seeing how everything came together in real life with those exact measurements is quite something.

It's #FreeCADFriday! Hope all you wonderful folk have had a great week. Show us what you are working on in #FreeCAD. #CAD

@freecad@social.freecad.org Oh it's #freecadfriday already! Well here's one for the "must you 3D print everything" category. Our arcade's new toilet has this tiniest of the tiny sink. We've had the soap dispenser on it awkwardly behind the tap while I've been hoping to find some kind of a wall mountable solution. All I could find was those flimsy suction cup mounted ones that you'll find on the floor after a while. I measured the the space between the wall and the sink and then made this. It fits there snugly and holds the soap bottle where it's actually easy to use from. #3dprinting #freecad

Today I share simple 3D-printable cable clips. They can help organizing cabling and prevent tangly messes. This is more like an #OpenSCADFriday than a #FreeCADFriday this time, but you can combine them using the #OpenSCAD workbench in #FreeCAD. https://www.printables.com/model/1795910 #3DPrint #CAD #DIY

While everyone is talking about the new #SteamMachine, I decided to buy a #FrameworkDesktop instead. It seems to be the superior computer. For this #FreeCADFriday, I prepared custom front panels and a modified side cover for the Framework Desktop. https://www.printables.com/model/1789145 https://www.printables.com/model/1789164 #FreeCAD #CAD #3DPrint #DIY #FrameworkComputer #Steam

Not Friday anymore, but my #FreeCADFriday was about getting some #QualityOfLife things together. Got my rotating hanging bar up again after a small redesign of the bearing holders. Also designed and #3DPrinted an end stop for my nieces' hang bar since they're worried that it'll fall out of the bearing. Haven't had my #PineTime on my arm for a few days since the strap broke. Printed a small loop in ASA and cut the zip flap off a discarded rain jacket to make myself a new one. #FreeCAD #DIY

This weeks #FreeCADFriday job is a little meta: making a handout for a upcoming #FreeCAD workshop in out hackerspace. This is heavily inspired from the #KiCad workshops I have been doing in the past, copying the basic concept.

Of course I made my own filament clips. As always, I share my @freecad@social.freecad.org file along with the printable files. https://www.printables.com/model/1770957 #FreeCAD #FreeCADFriday #CAD #3DPrinting #3DPrint

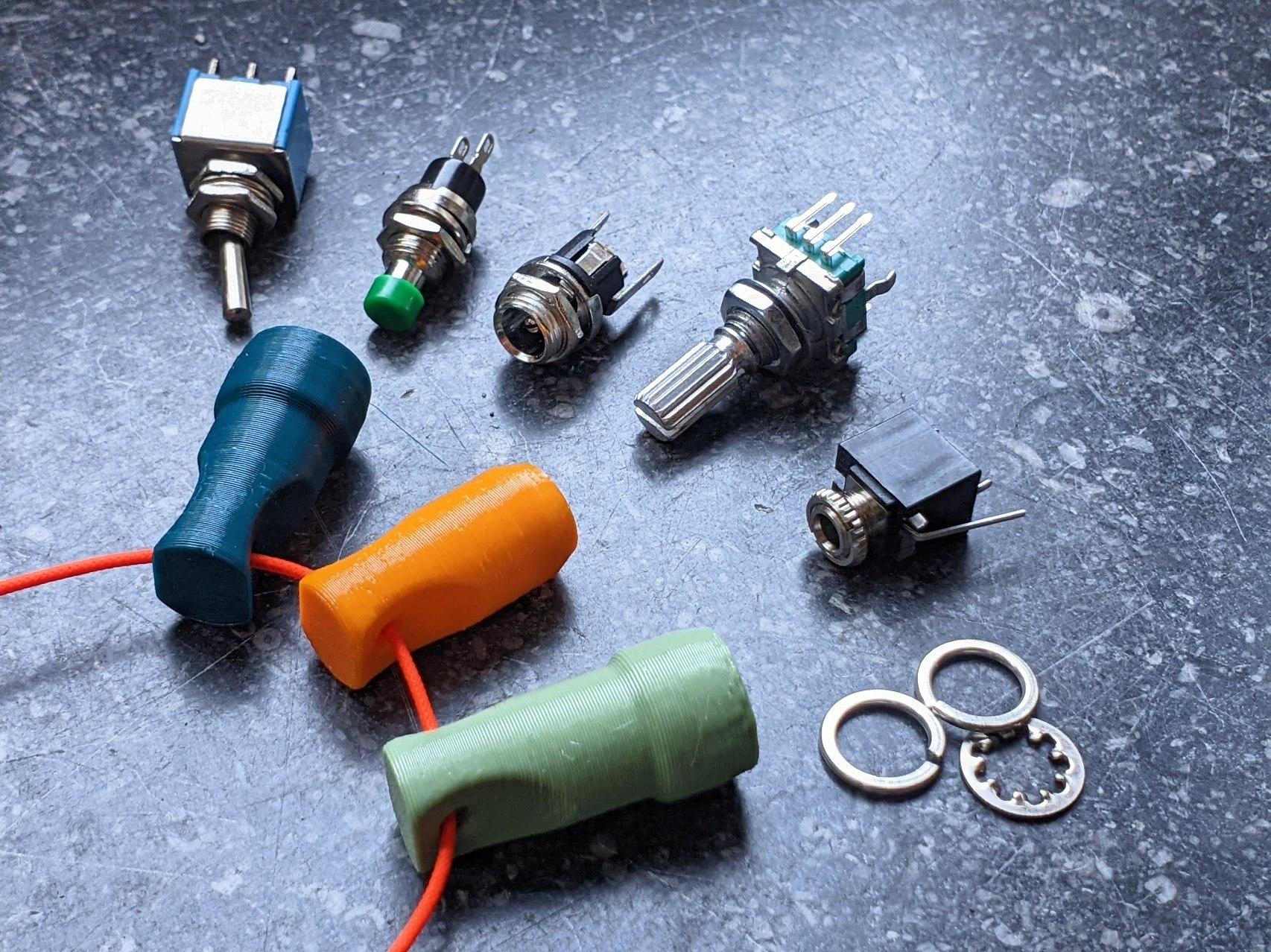

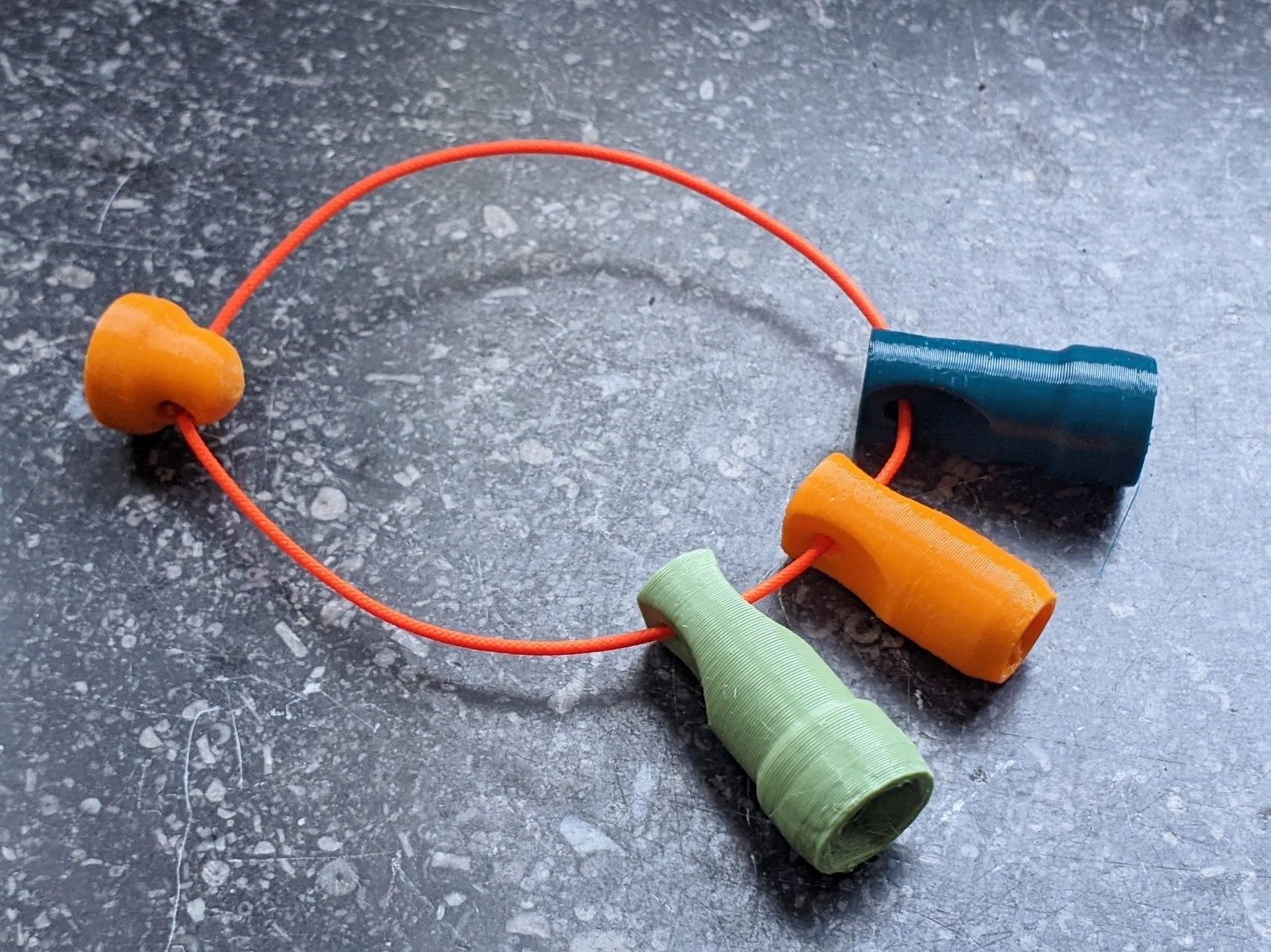

After years of pain I made a set of simple tools to tighten and loosen the most common panel nuts found in my DIY electronics projects. like EuroRack modules 🎛 microcontroller Project cases. they've made assembly much easier for me. Hopefully they'll be useful for others too! https://www.printables.com/model/1764975 I uploaded also the @freecad@social.freecad.org file #FreeCADFriday #eurorack #synth #3dPrinting #electronics

It can be dangerous if the cables on a standing desk get caught during height adjustion. For this #FreeCADFriday, I have prepared a simple cable chain to prevent such accidents. The models are, as always, created with @freecad@social.freecad.org and parameterized. They can be adjusted to your needs. https://www.printables.com/model/1750880 #FreeCAD #CAD #3DPrint #DIY #Office

This #freecadfriday I've been finding @freecad@social.freecad.org useful for designing a logo for our new Dynamic Cross Link (DXL) system. I know something like #blender would probably be a more suitable tool for this sort of thing, but I'm so much more competent in FreeCAD that I could knock up a 3D logo and animate it for my video in about half an hour instead of having to (re)learn Blender. I like the effect.
