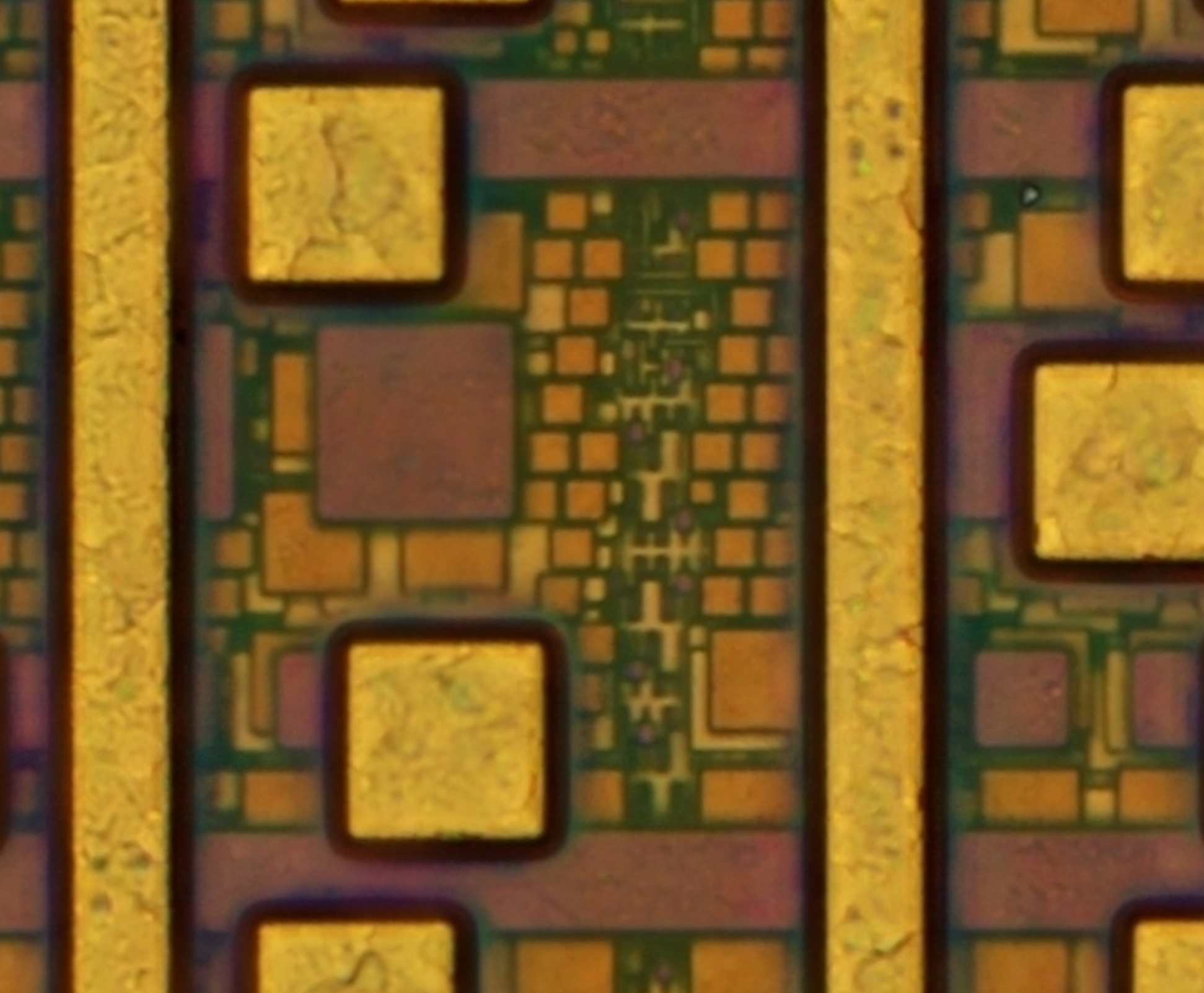

I did find a spot where something other than the dummy feel or wiring can be seen! Looks like standard cells. But it'd probably be best if you refer to the original design. 😃

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 31, 2026

Replying to @infosecdj@infosec.exchange

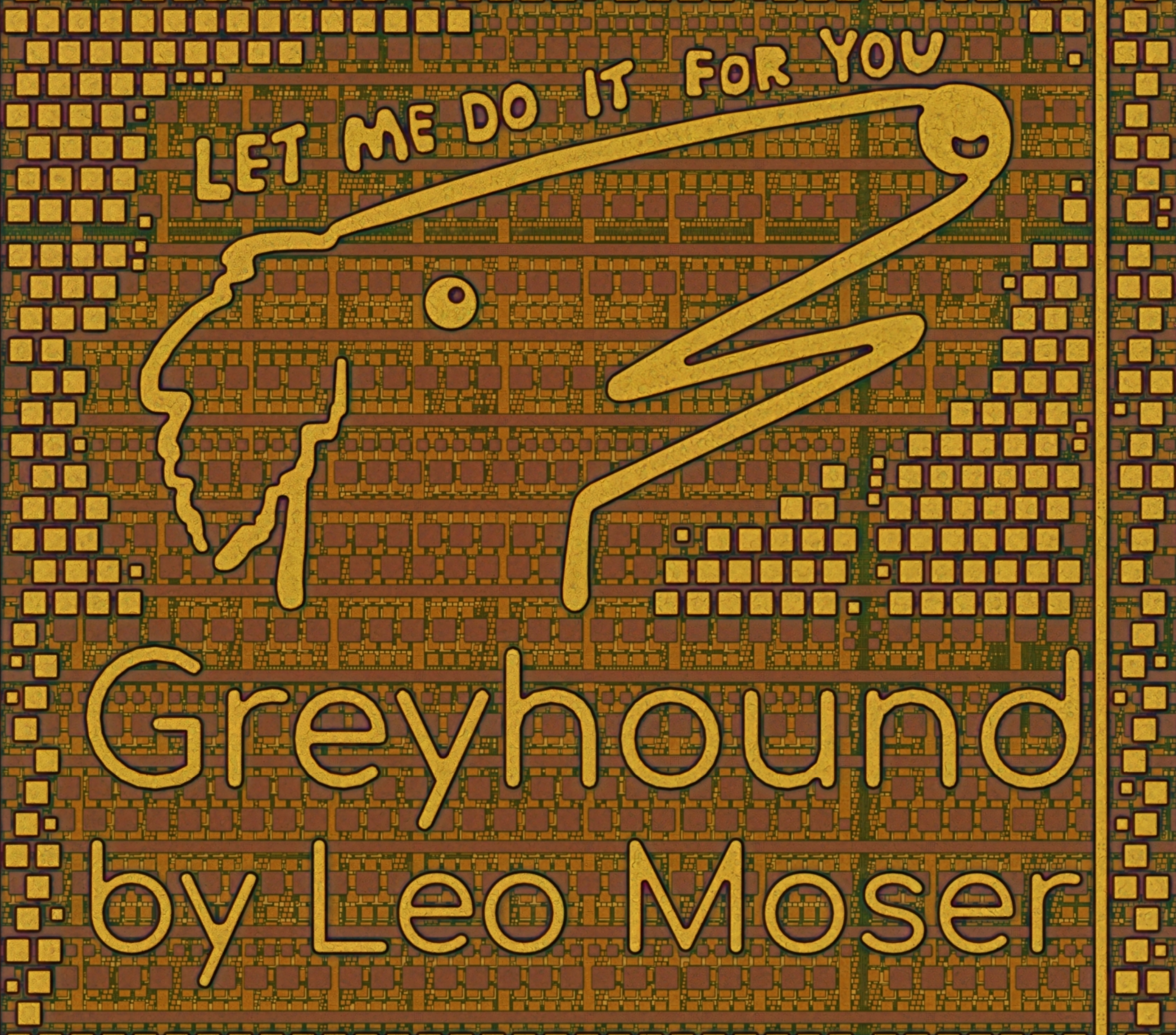

The prominent doodle can be noticed on the thumbnail image. Here is a close-up.

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 31, 2026

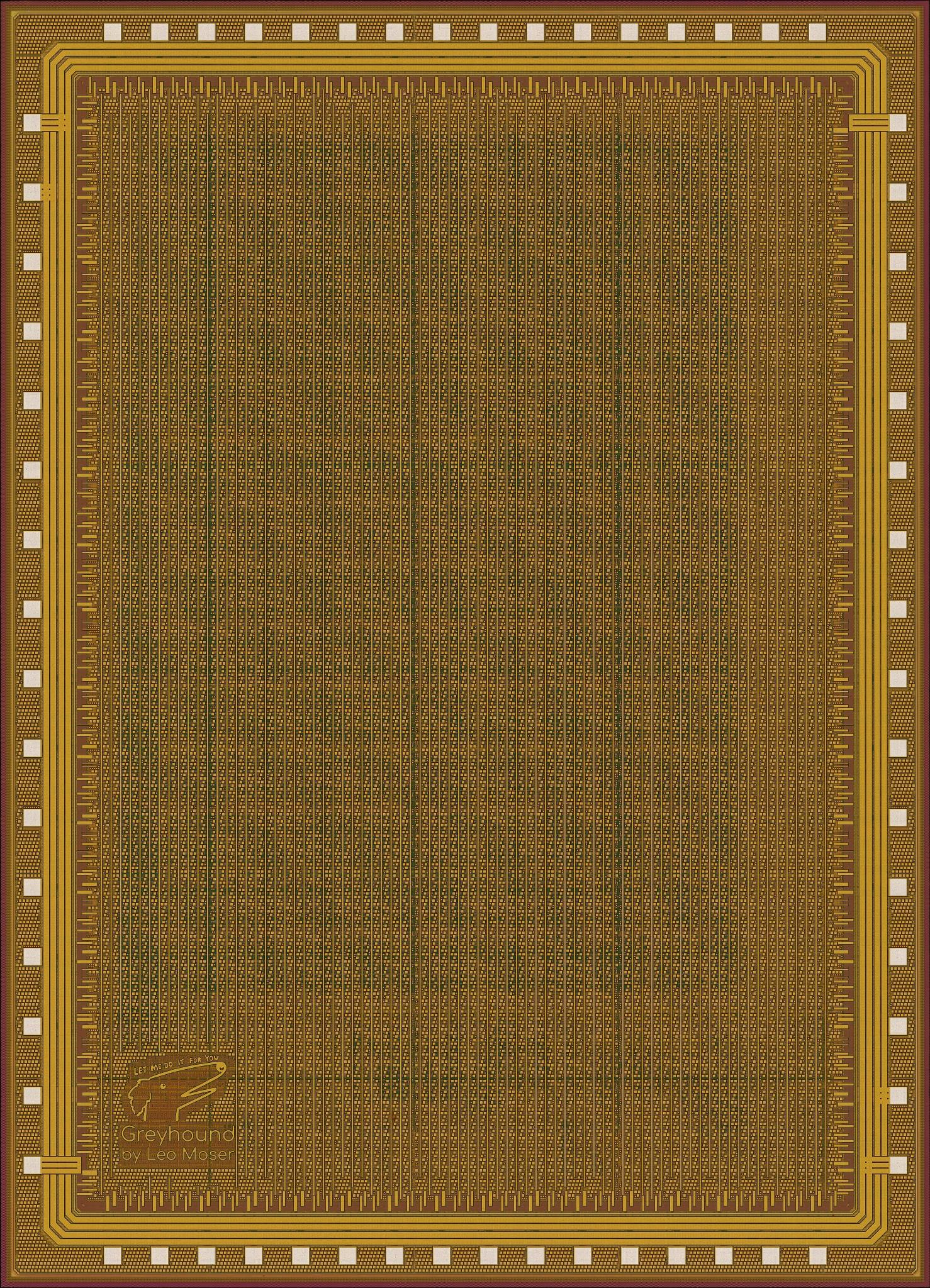

Hello and welcome to #NakedDieFriday -- the last one this month. Please have a look at this nice die, designed by @mole99@fosstodon.org as part of his master's thesis. It's called Greyhound: A RISC-V SoC with tightly coupled eFPGA on IHP SG13G2. For once, this is something where sources are available: https://github.com/mole99/greyhound-ihp/ And a full-res map I took of the sample Leo provided me with: http://infosecdj.net/map/ihp/mole99-greyhound/infosecdj_mz_nikpa40x/ #electronics

16

2

10

1

DJ🌞

@infosecdj@infosec.exchange · Jul 29, 2026

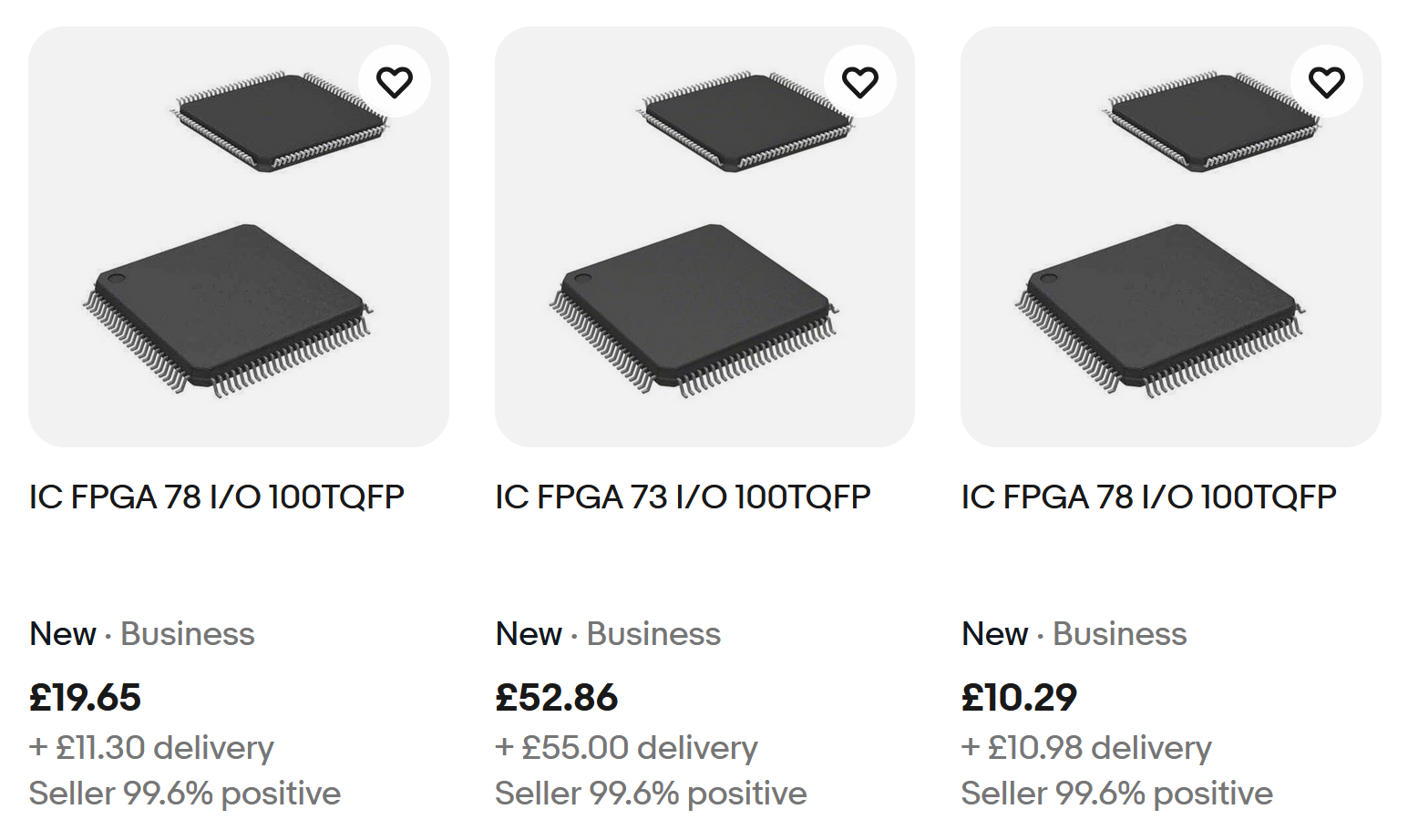

I mean, yeah, sure, we buy them by the bucket anyway. #fpga

0

DJ🌞

@infosecdj@infosec.exchange · Jul 28, 2026

Replying to @png@yap.pony.biz

@png@yap.pony.biz @drwhax@infosec.exchange That's true! In an ideal world that could be the norm. But until that's in place, at least some of us could chip in. Wasn't that the way things were ran in the good old days -- submitting patches for problems? A crowd pointing at problems all the time can be strongly demotivating, but it does not have to be that way. Yet I am still to hear of a security expert submitting solutions together with problems they point out. A rare animal indeed. ;-)

0

DJ🌞

@infosecdj@infosec.exchange · Jul 28, 2026

Replying to @drwhax@infosec.exchange

@drwhax@infosec.exchange @png@yap.pony.biz I mean, it would not kill you to also submit a patch fixing the issue you found, would it. Certainly isn't the silver bullet, but I am sure it could help many of those overworked poor souls. So.. have you submitted patches together with your reports?

2

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 28, 2026

I just noticed, but when a security guard punches in the combination on a panel, the sound effect is in fact on his voice track. He literally does "poom poom" with his mouth, and I find that hilarious. #halflife

0

DJ🌞

@infosecdj@infosec.exchange · Jul 26, 2026

Replying to @Kugg@infosec.exchange

@Kugg@infosec.exchange Oh I don't know, we got rain tonight, will try my luck in a couple days too. Last time was decent.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

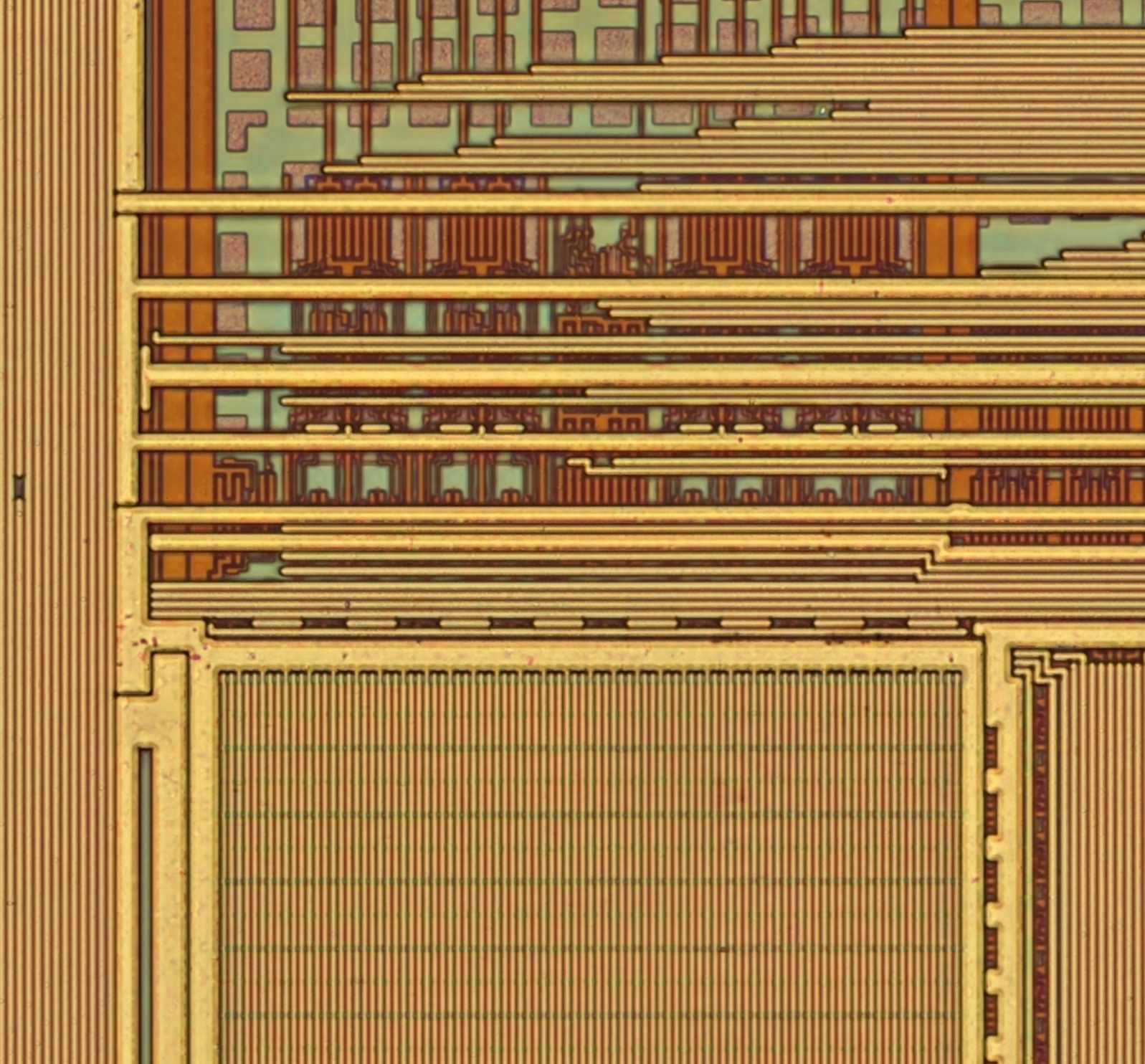

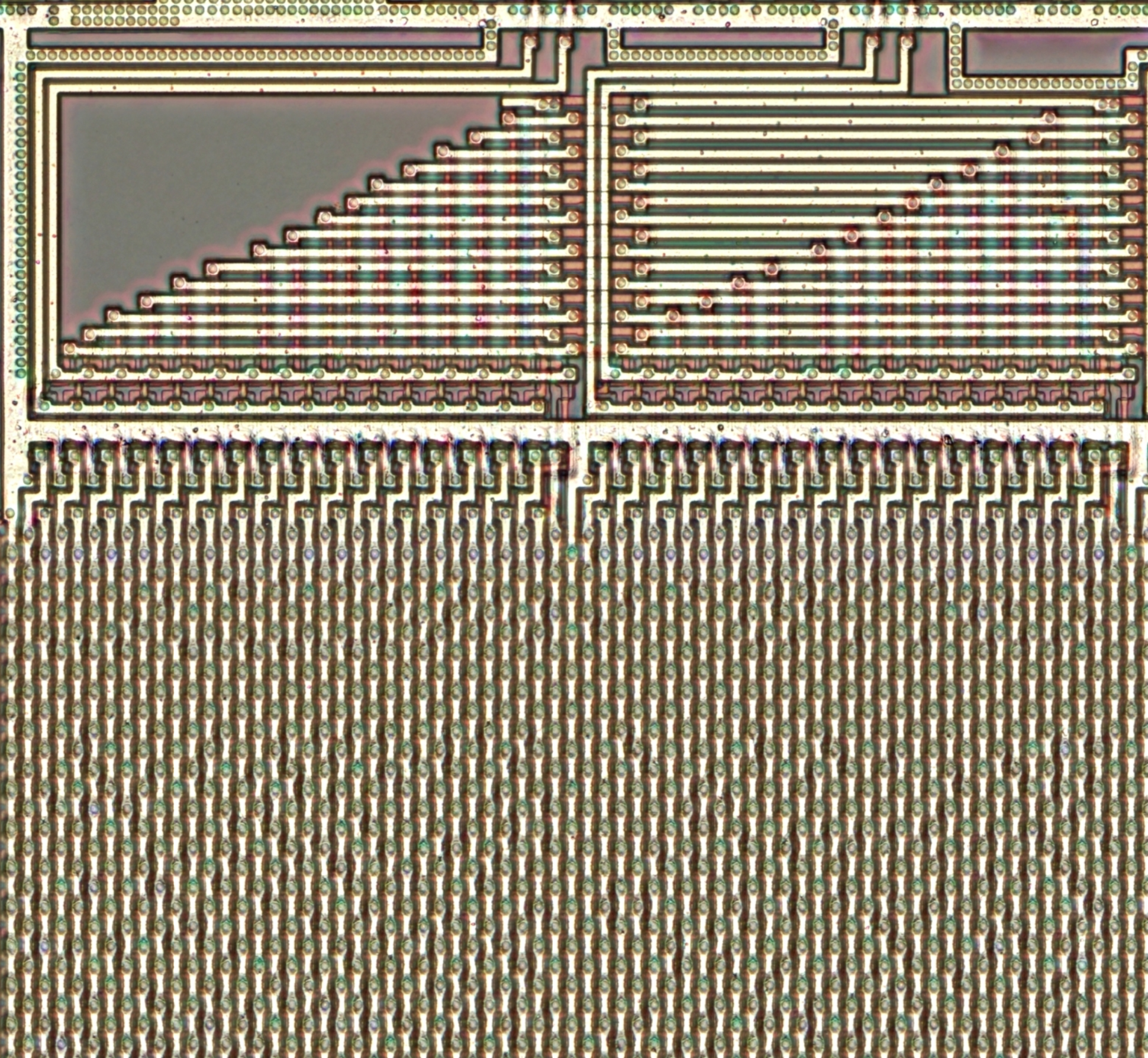

Mask ROM is, of course, much denser, but they still had to be creative with layout. Contact size seems to be the main issue here.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

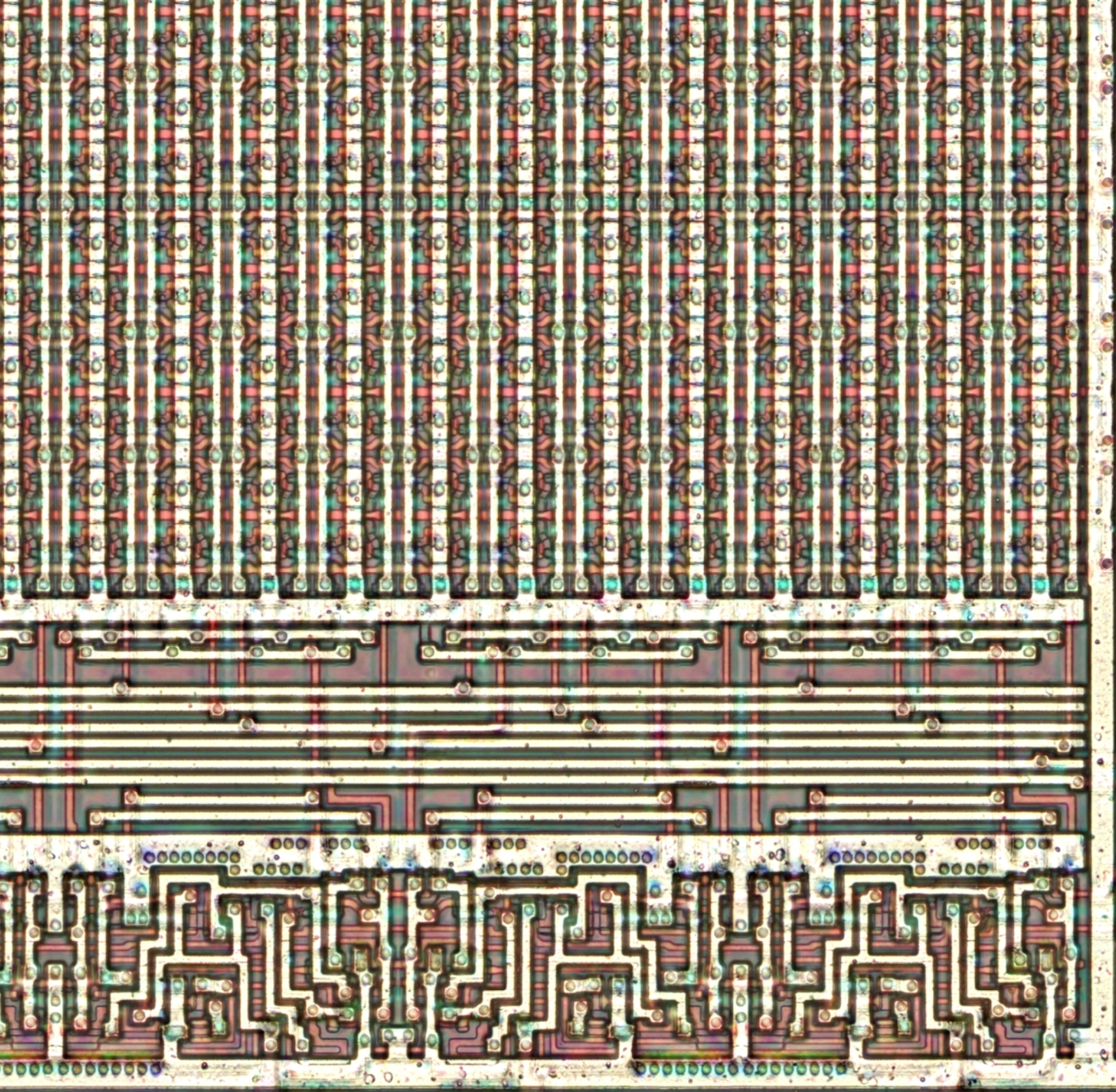

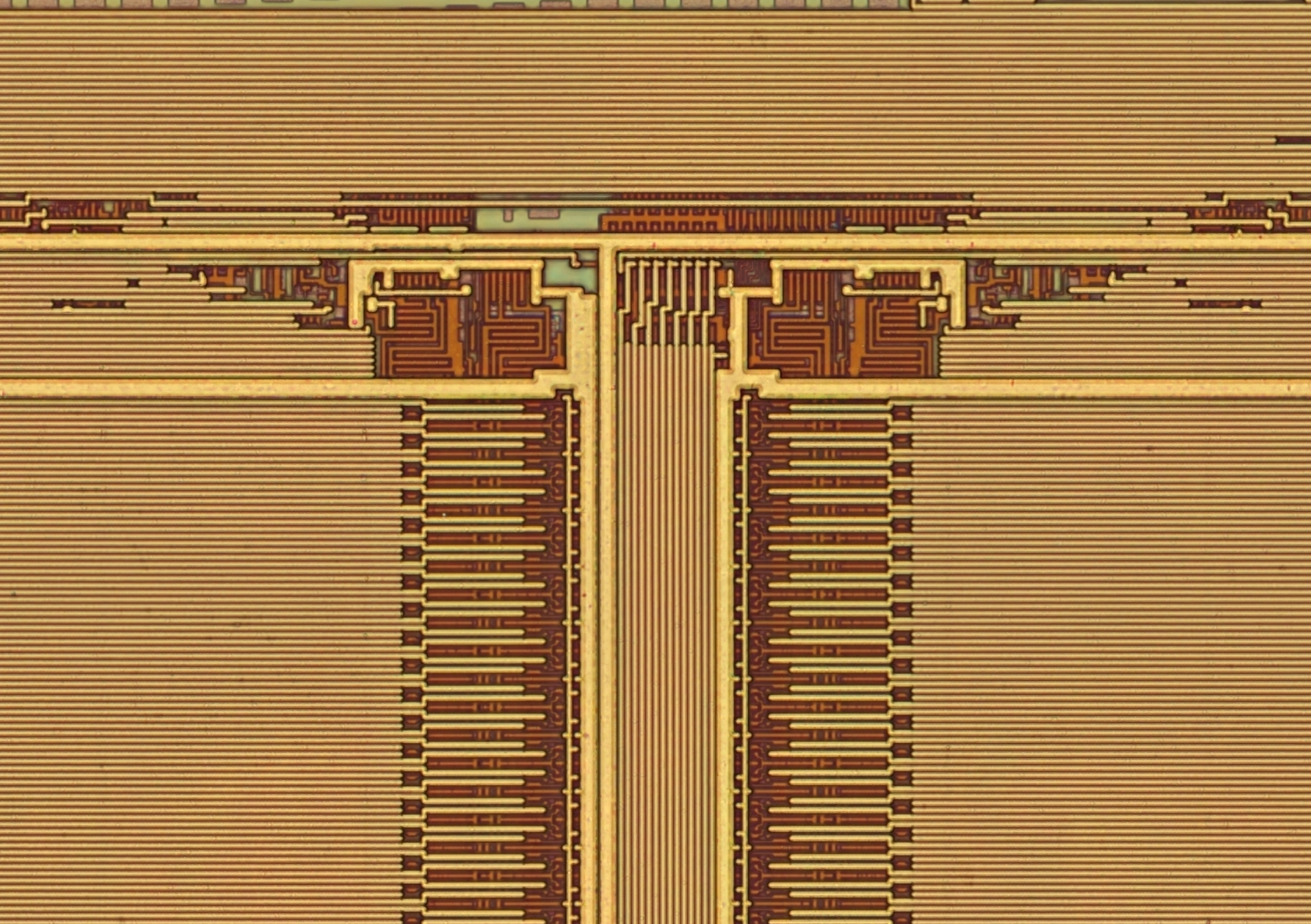

RAM density looks absolutely abysmal. The chip only has 224 bytes (yes, bytes) of SRAM, taking about the same area as the whole datapath of the CPU core.

0

2

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

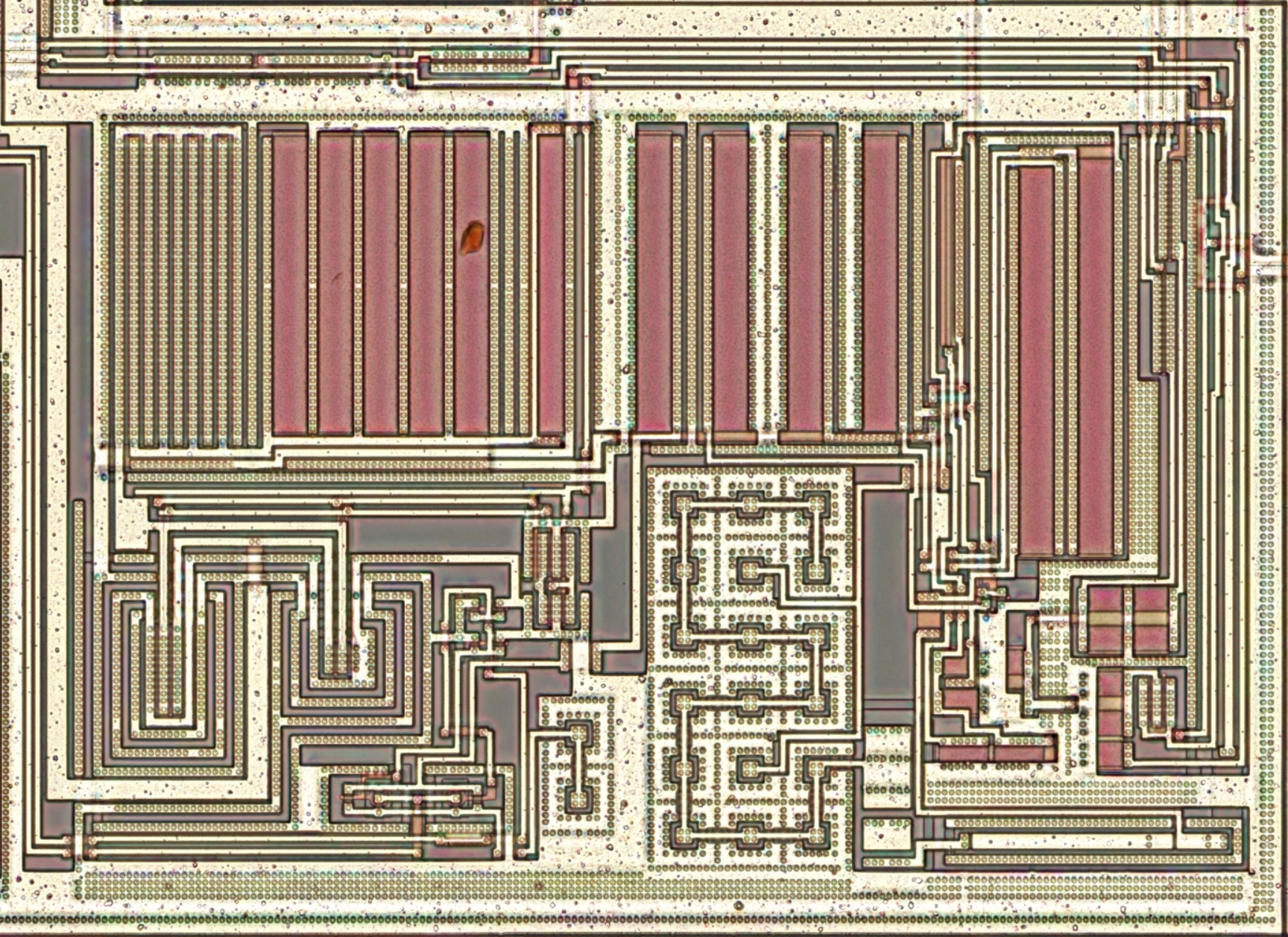

And (part of) the ADC proper, always an intricate design.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

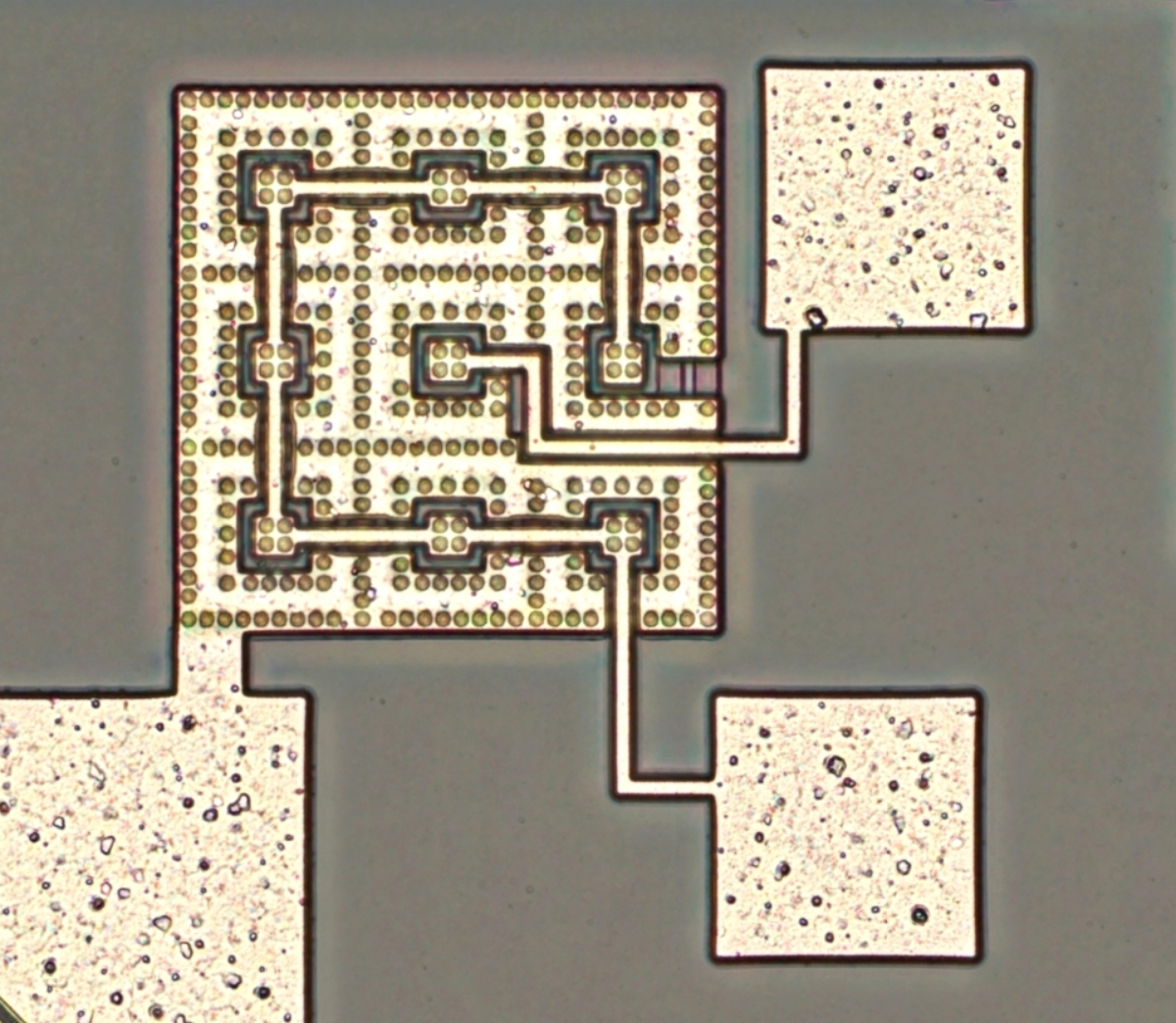

And e-test features for this funny doodad typical for ADCs. Probe pads are not opened though, interesting.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

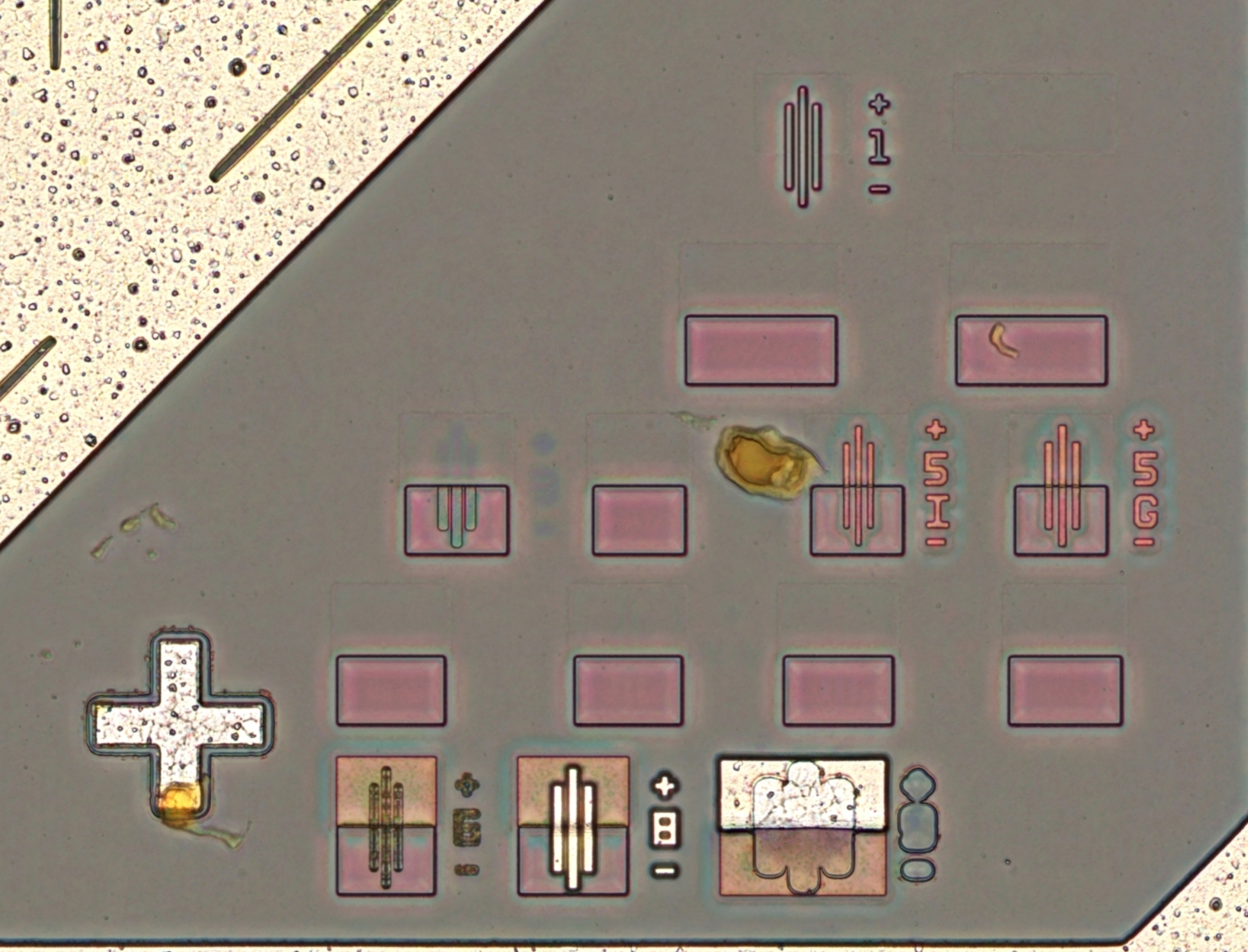

Mask alignment, IDs, and CD features.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

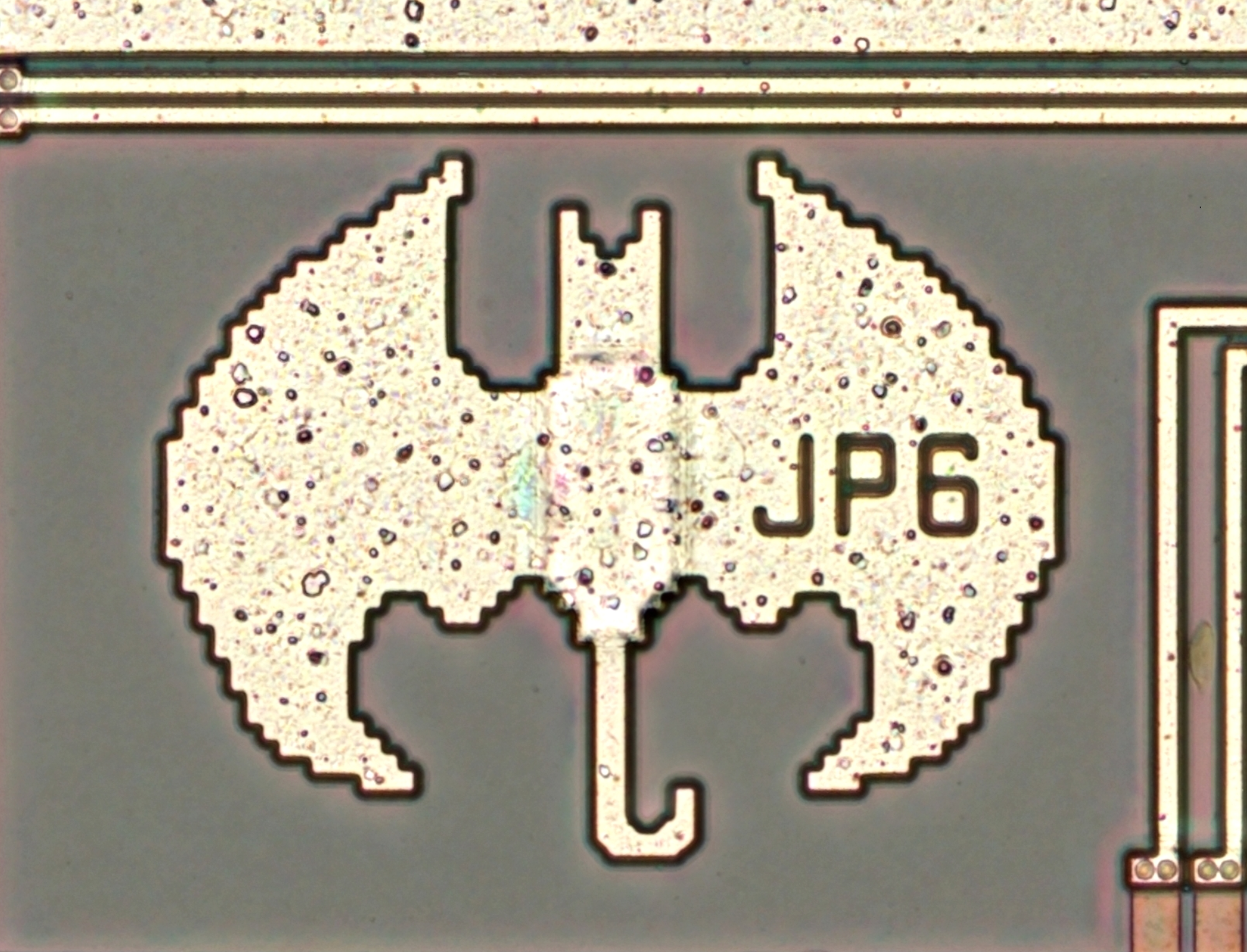

And we have a doodle! Looks like a bat? I wonder why this one was chosen by the design team.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @infosecdj@infosec.exchange

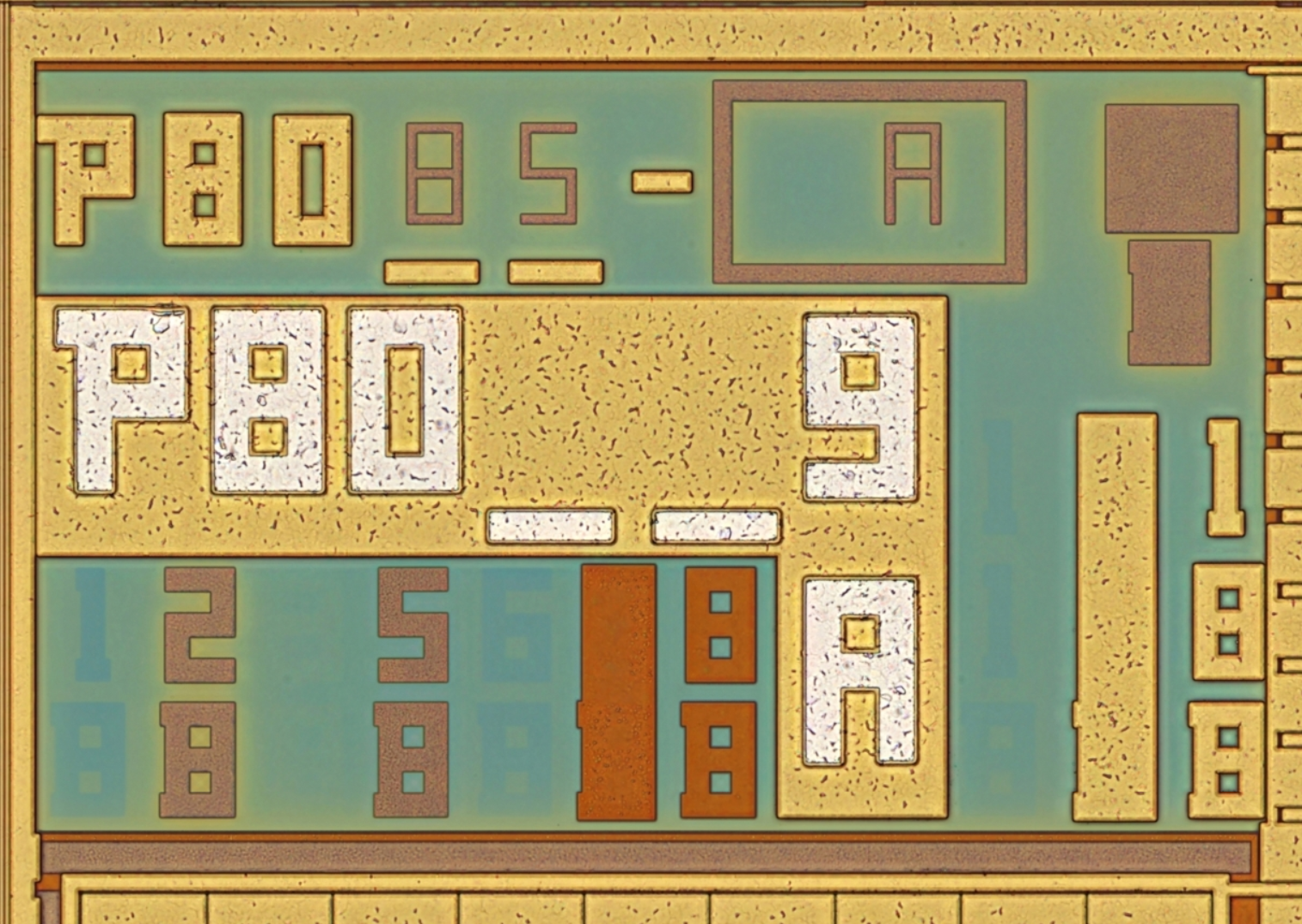

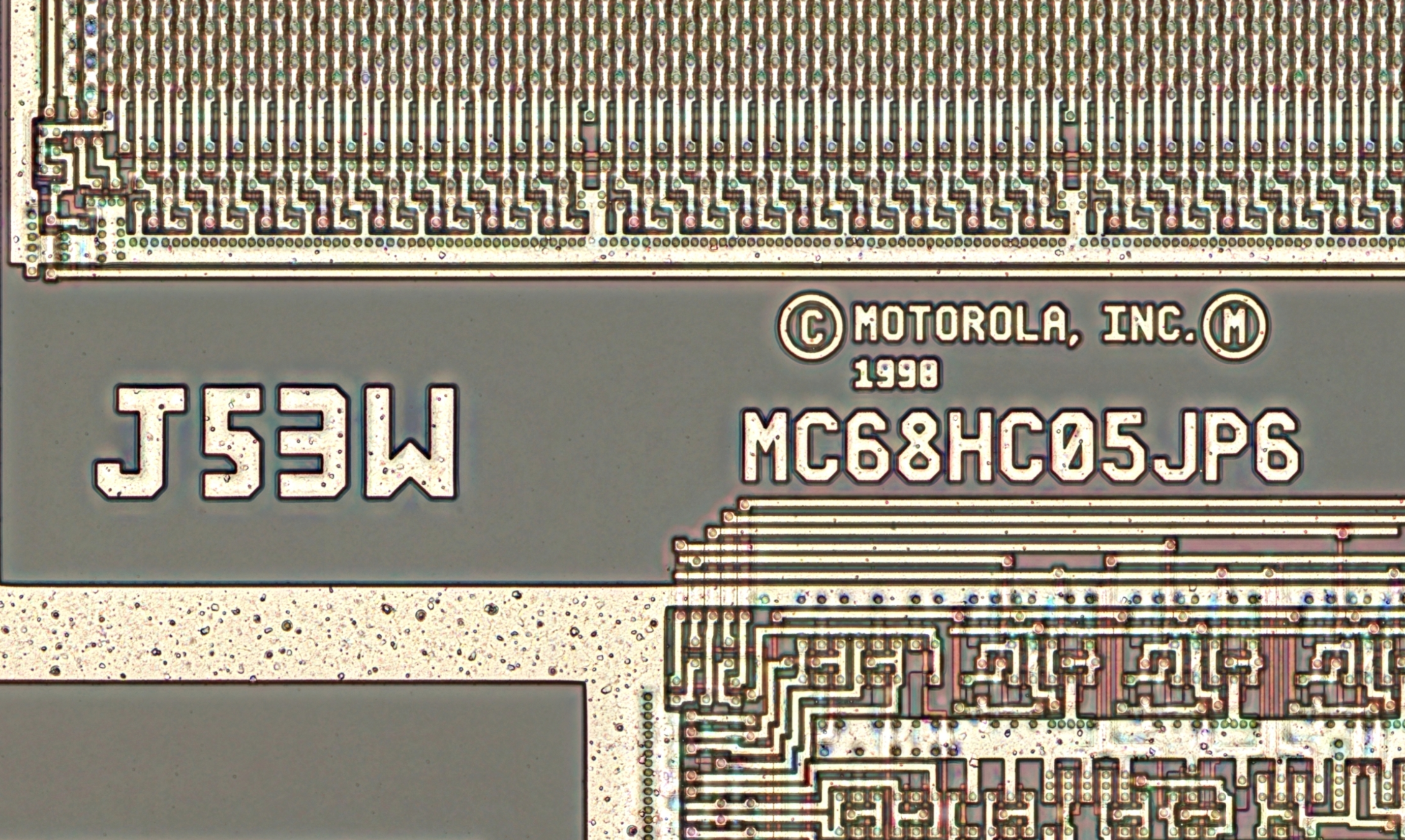

Maskset ID and maskwork rights note, together with the original part number. This is J53W.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

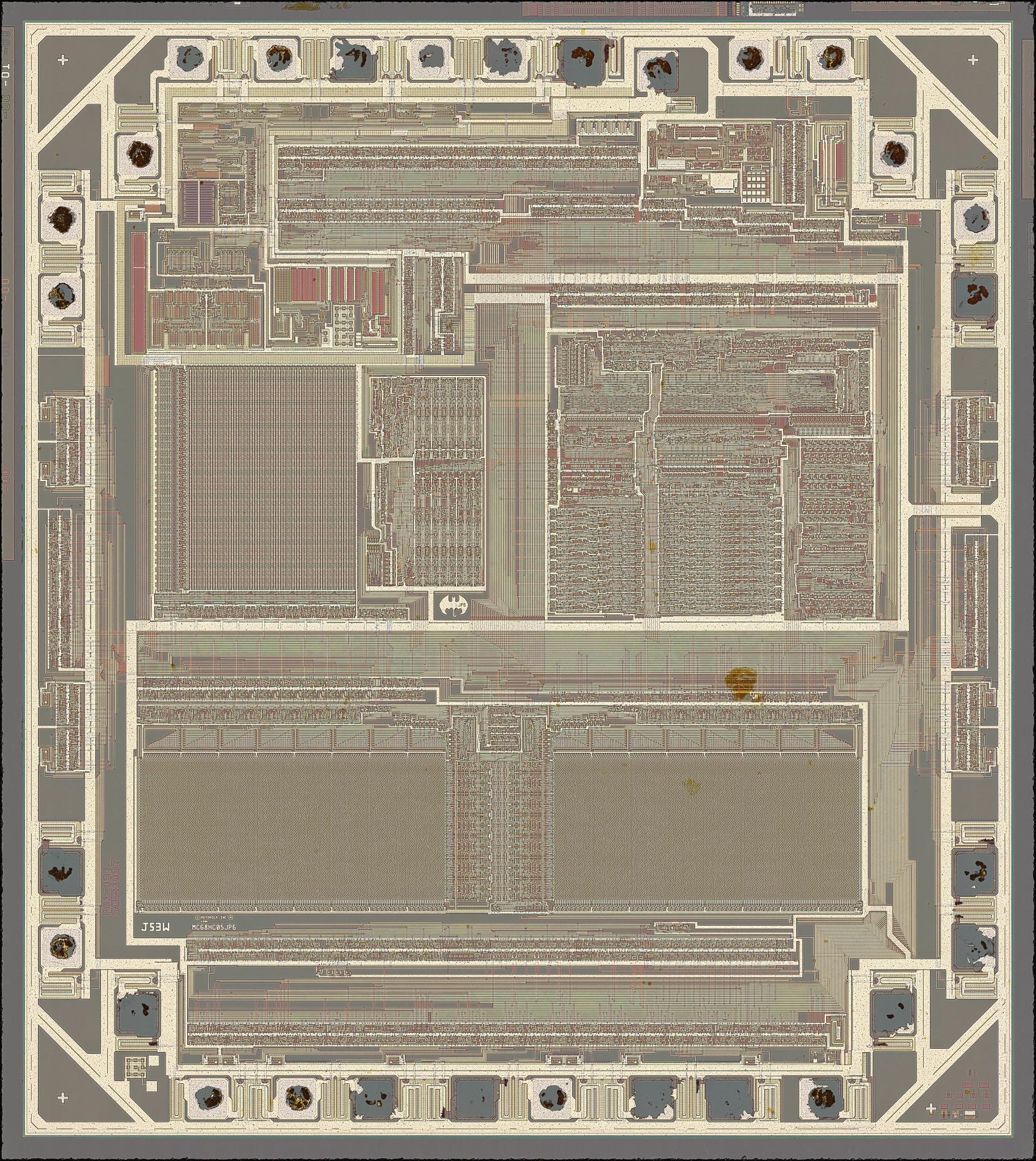

Ahoy there, #NakedDieFriday is late in the day but still happening! Today I got a Motorola part for you, one named SC541097. This looks like a special run of MC68HC05JP, which is a HC05-based microcontroller. Many thanks to @RueNahcMohr@infosec.exchange for supplying this sample! Full-res map: http://infosecdj.net/map/motorola/sc541097-j53w/infosecdj_mz_nikpa40x/ #electronics #reverseengineering #microscopy

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Almost there. :-)

0

DJ🌞

@infosecdj@infosec.exchange · Jul 24, 2026

Replying to @root42@chaos.social

@root42@chaos.social How in the world does one break a screw in plastic??

0

DJ🌞

@infosecdj@infosec.exchange · Jul 23, 2026

Replying to @da_667@infosec.exchange

@da_667@infosec.exchange everything holds provided you have a particular definition for "humanity". aka those who benefit and are not affected.

0

DJ🌞

@infosecdj@infosec.exchange · Jul 21, 2026

Replying to @riley@toot.cat

@riley@toot.cat It seems to be the same they have in their business registration. Frankly, I did not invest too much time in OSINT here. :-) @stefanie@social.anoxinon.de @brouhaha@mastodon.social

0

DJ🌞

@infosecdj@infosec.exchange · Jul 21, 2026

Replying to @riley@toot.cat

@riley@toot.cat You are correct, the package's origin was in Brno, CZ. Though at that address is their office, not a warehouse or anything. @stefanie@social.anoxinon.de @brouhaha@mastodon.social

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 21, 2026

Replying to @infosecdj@infosec.exchange

@stefanie@social.anoxinon.de @riley@toot.cat @brouhaha@mastodon.social Huh. It was shipped from within the EU, so no extra charges got slapped on it. It was a list of 20+ positions (R, C, semi, connectors, etc). YMMV, but it seems safe to order for now?

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 21, 2026

Replying to @stefanie@social.anoxinon.de

@stefanie@social.anoxinon.de @riley@toot.cat @brouhaha@mastodon.social I placed a Mouser order last week, we shall see how this goes. Should arrive this week, I hope.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 19, 2026

Replying to @buherator@infosec.place

@buherator@infosec.place It is always easier to blame our own stupidity and near-sightedness on someone else, be it aliens, gods, or enemies.

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @LanceJZ@mastodon.social

@LanceJZ@mastodon.social Ha!

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

I think I will close the thread here, but by any means go and have a scroll around. So much interesting stuff on this die. Thanks for joining me today! Hope you have a great end of the week, and as always, see you next Friday!

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

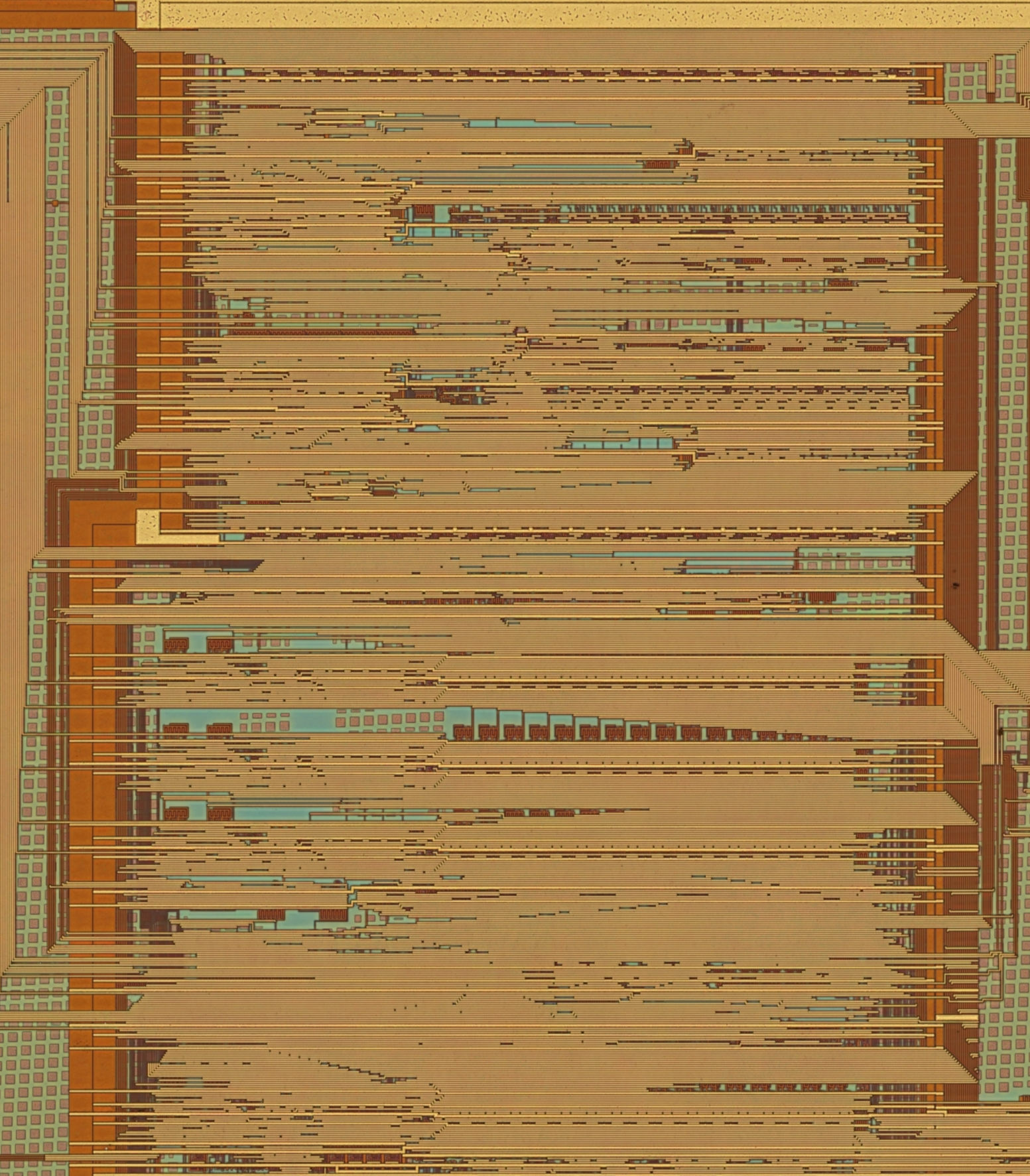

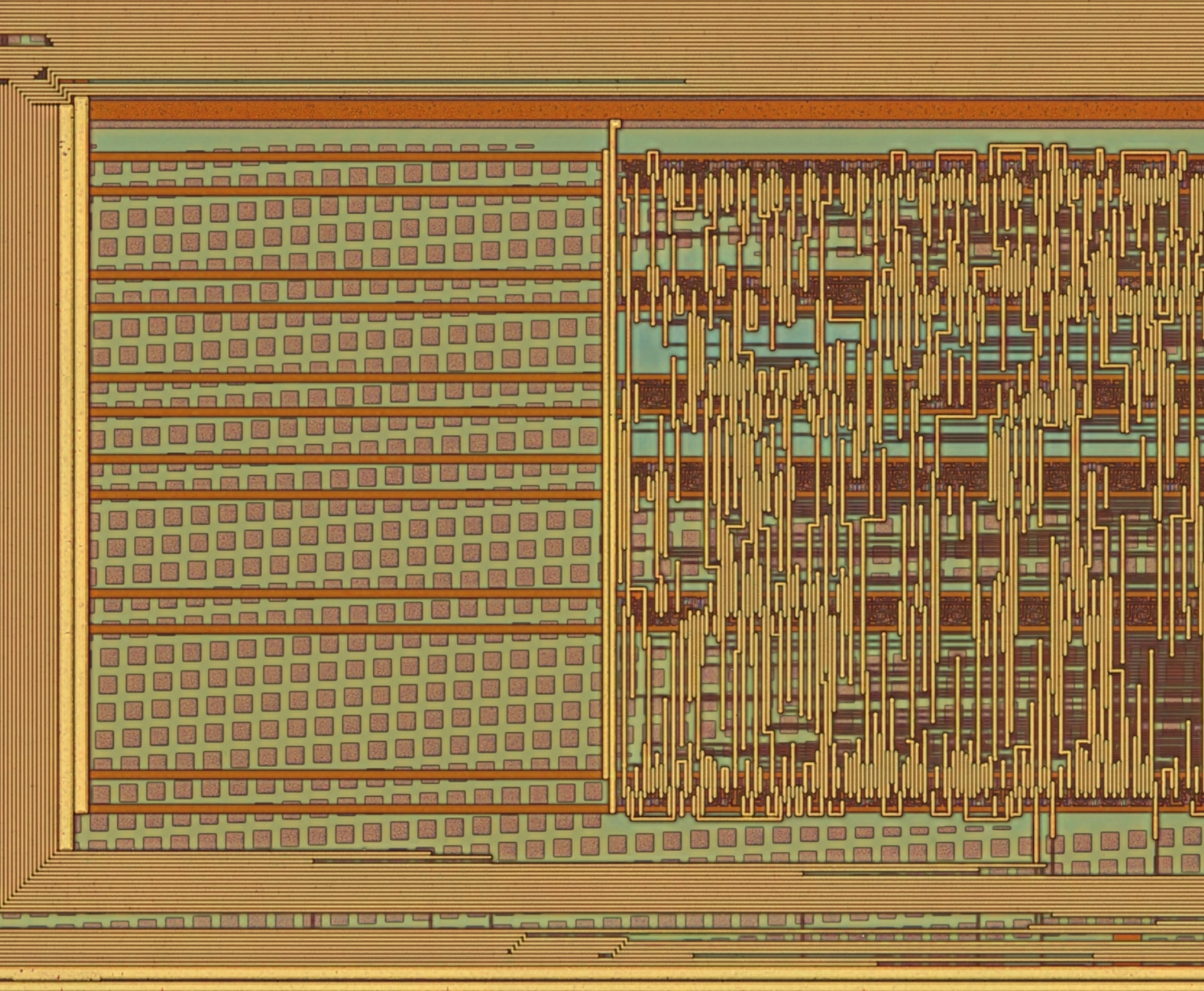

There is a block of standard cells at the top left. It looks like it's missing something as well. On another note, two routing channels are missing dummy fill and instead have something else. Mysterious!

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

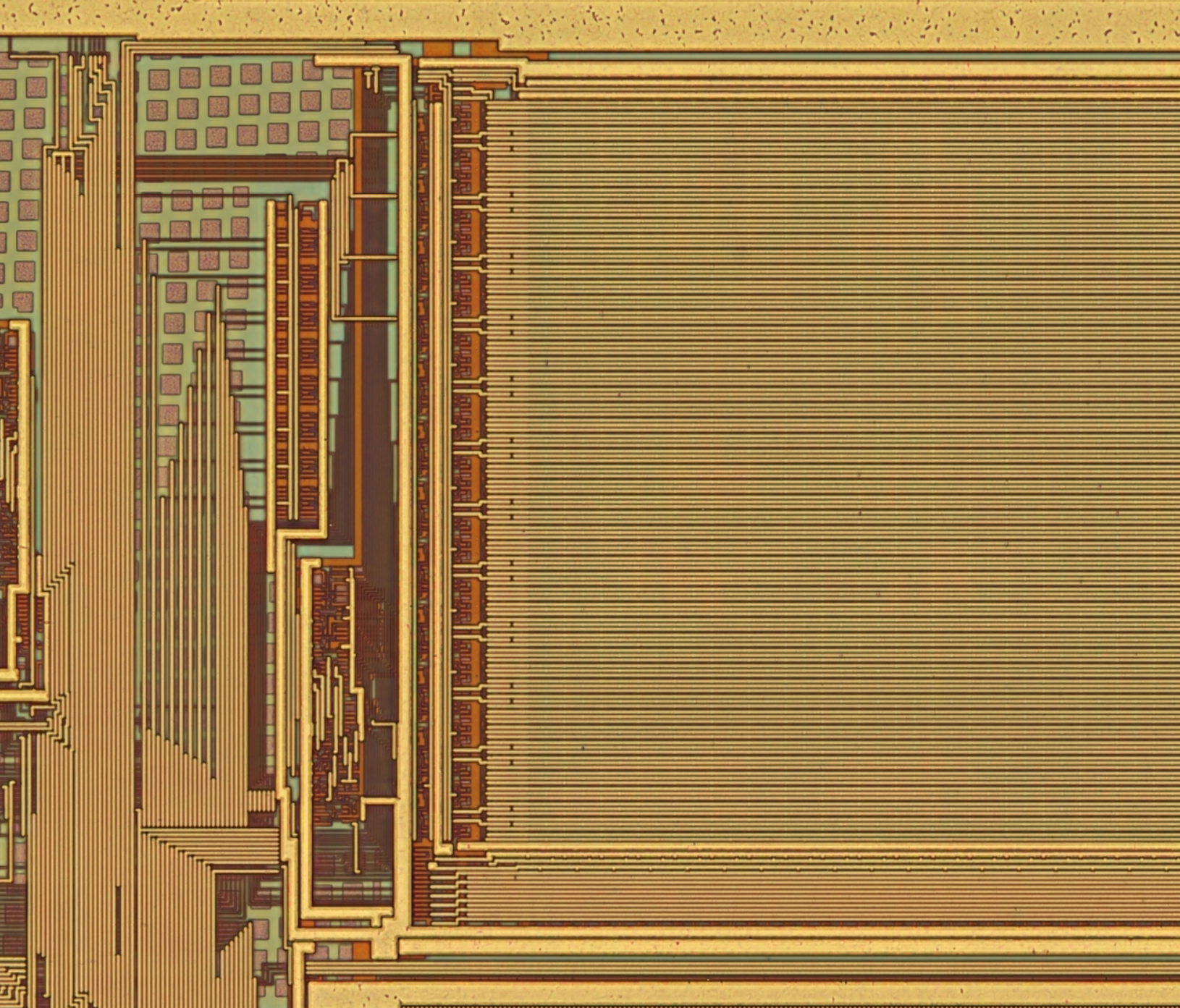

And a 12-bit RAM block, for some reason?

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

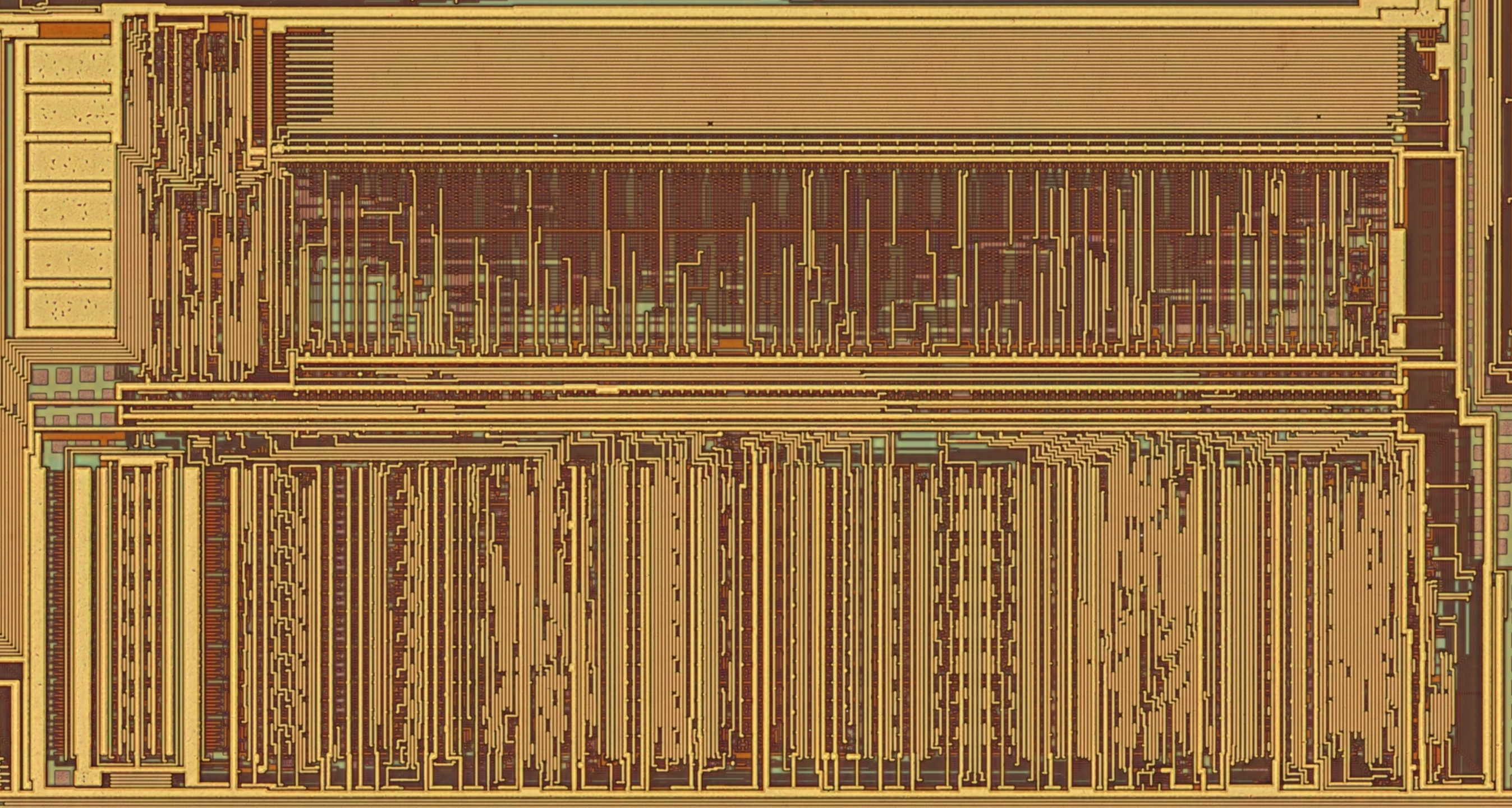

And what do we have here, this reeks of a 8-bit CPU design. From the top: microcode PLA, control, data path. I wonder if this is something standard like a 8051?

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

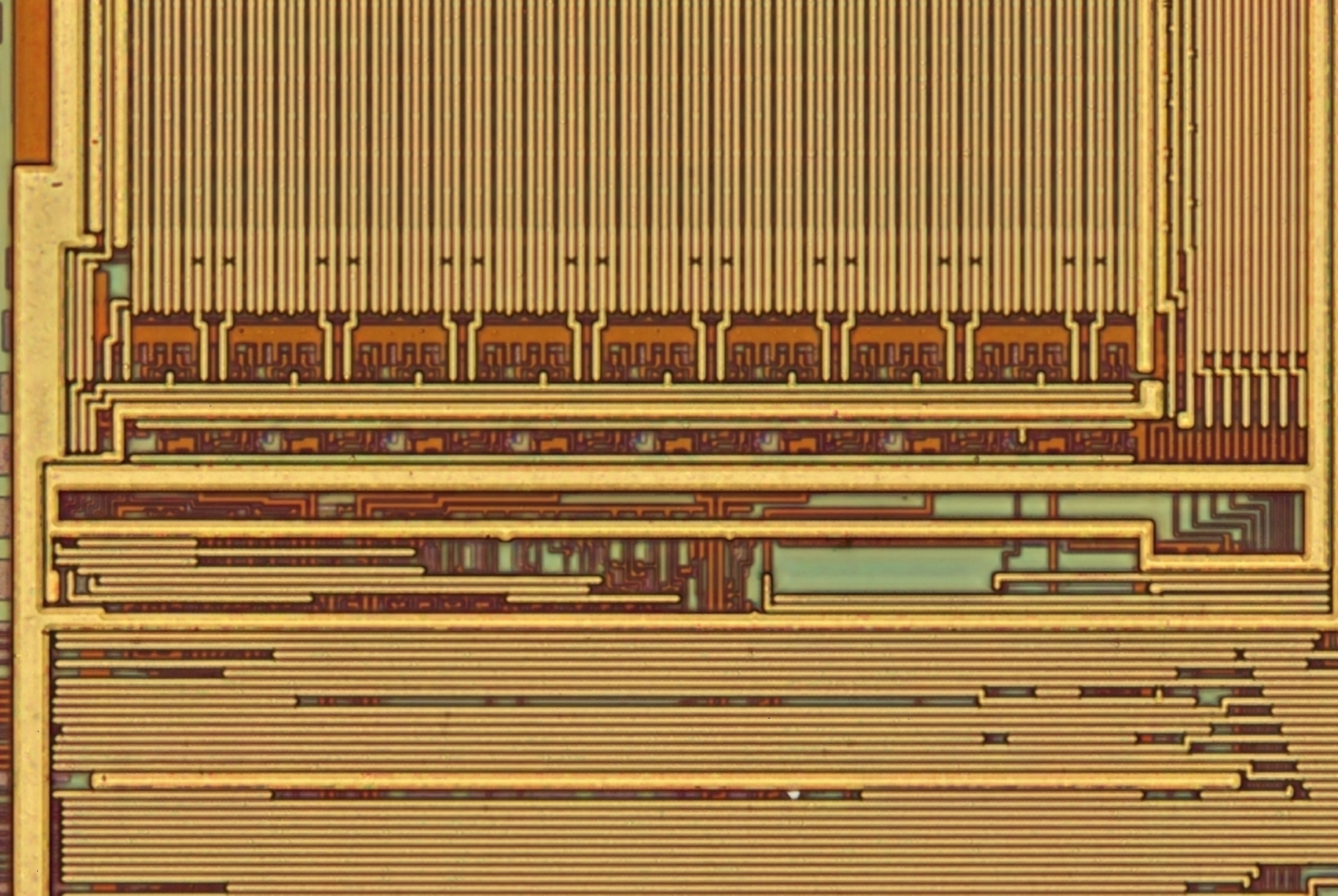

Returning upstairs, it seems this is the 8/16-bit machine, like 8 data and 16 address bits. All the SRAM blocks seem to have 8-bit I/O if you look *really* close.

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

This could be the "normal" ALU for the DSP, judging by the many 16-way sub-units in there, plus a 16-bit bus running on the right.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

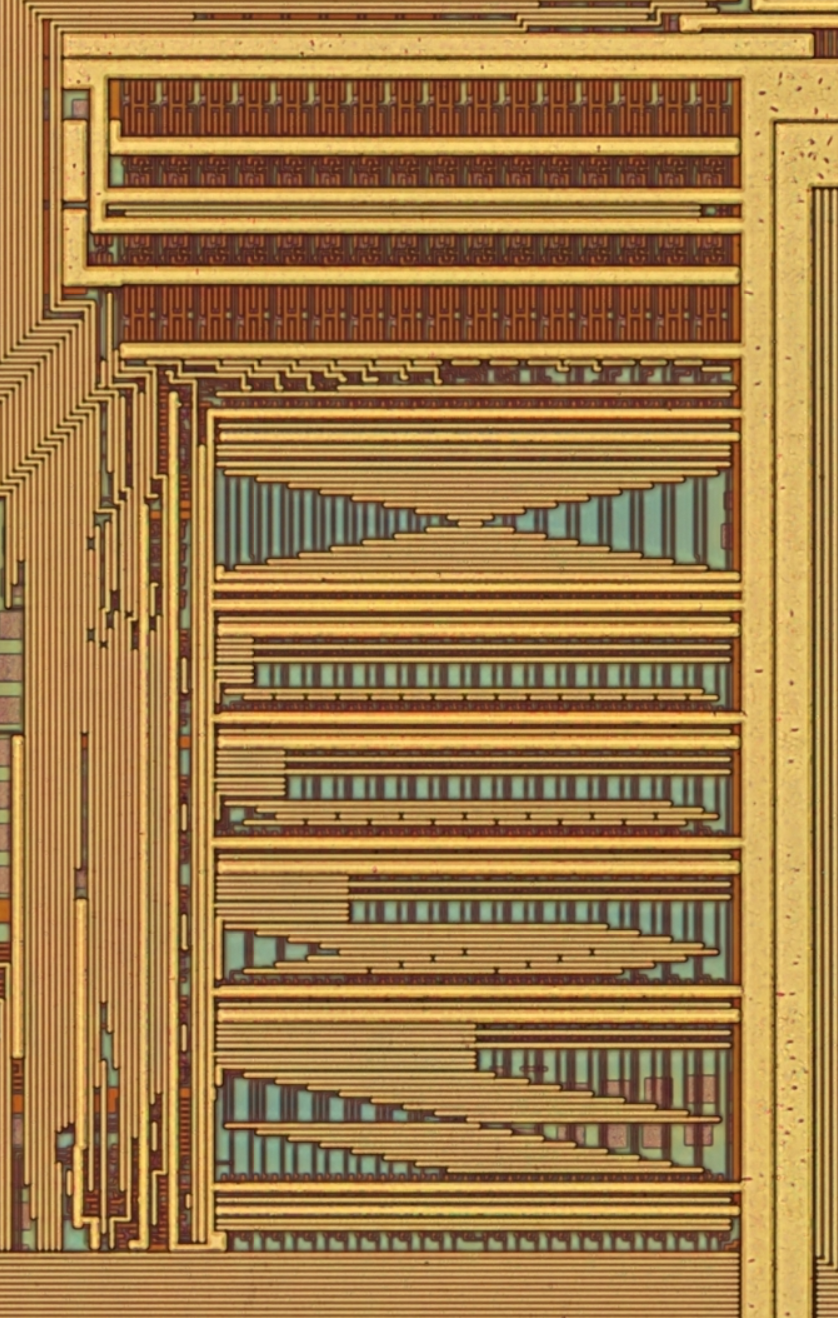

A 16-bit shift or swizzle unit? Seems it can also do bit-reverse, which is useful for DSP code.

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

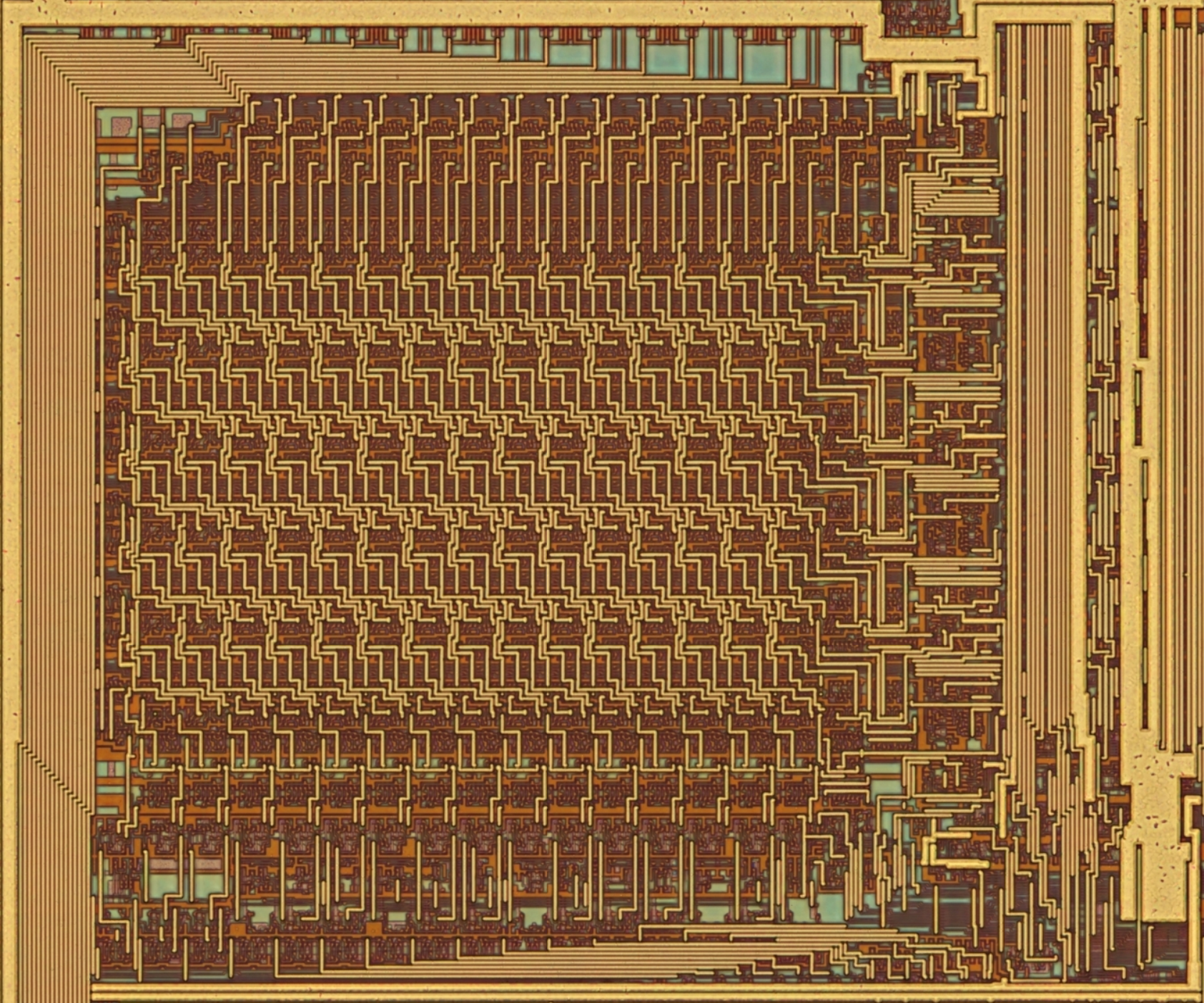

A lot of funky stuff is at the bottom there, like this interesting unit. Apart from it being 16 bits wide, I can't figure much about what it does -- my best guess is multiplication. What do you think?

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

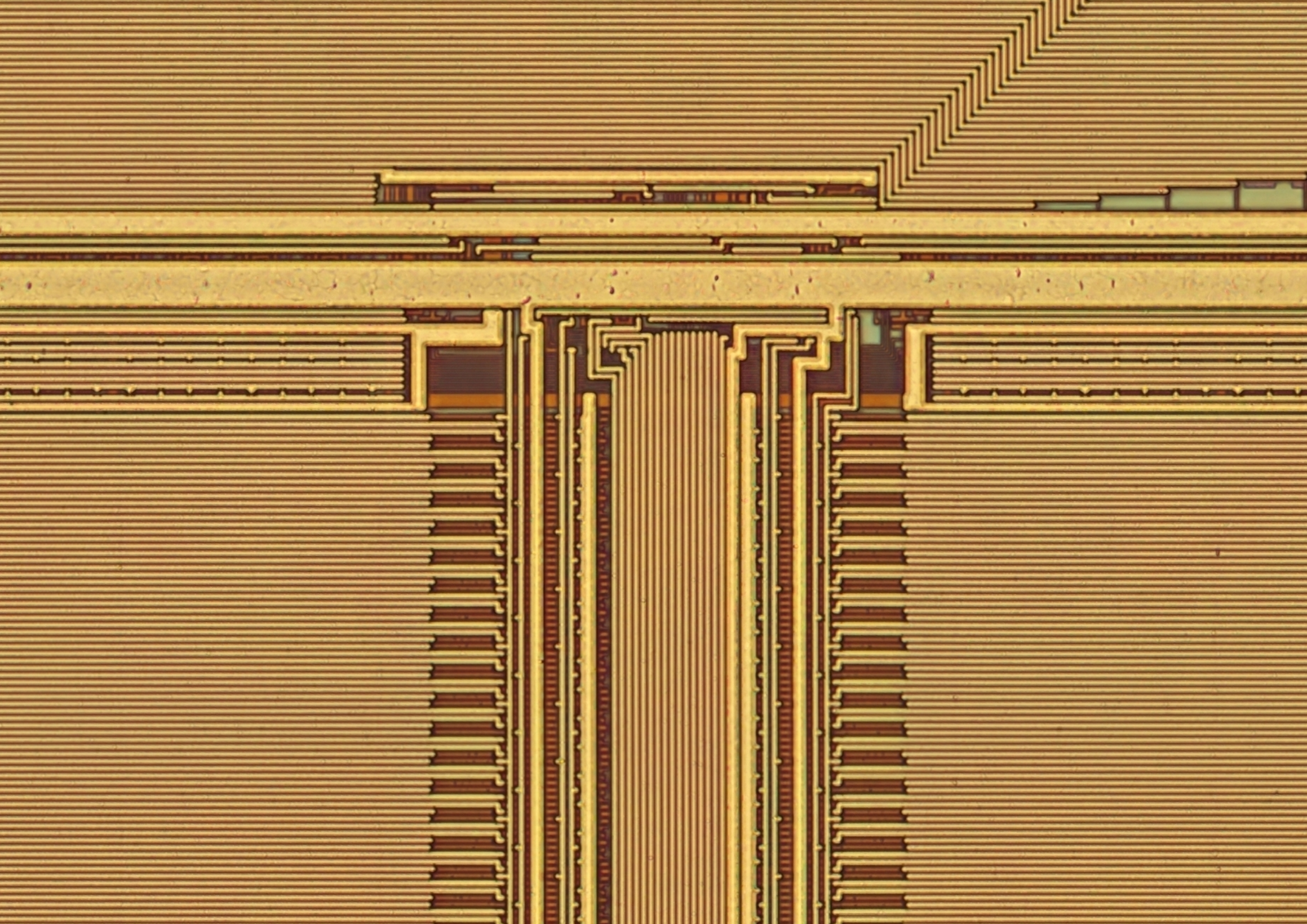

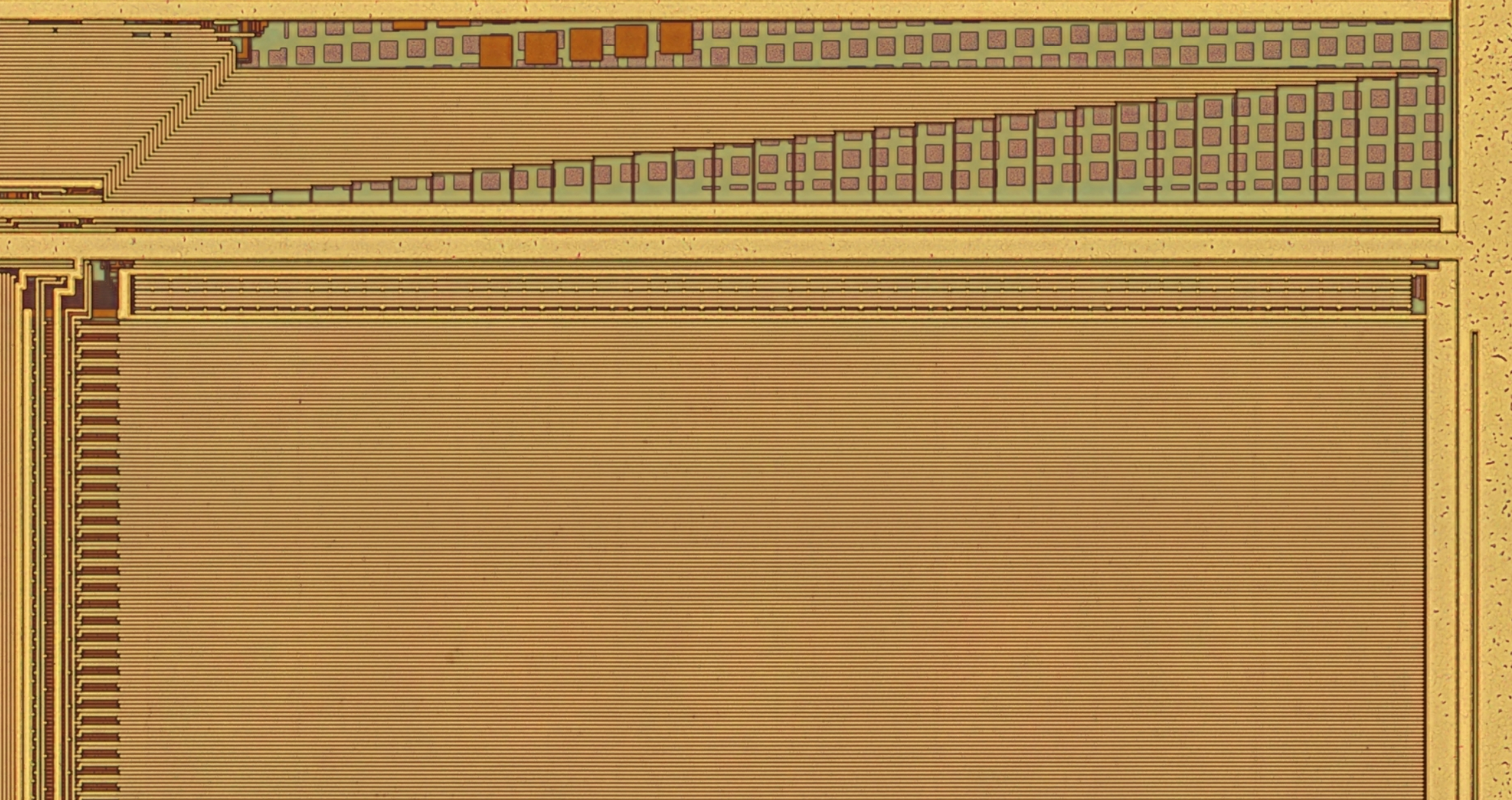

This could be explained due to width: ROMs in the bottom half seem to be 32 bits wide, which is... interesting? Could the bottom half be a DSP?

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

Same goes for ROMs, on the example of siamesed blocks here, top vs bottom.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

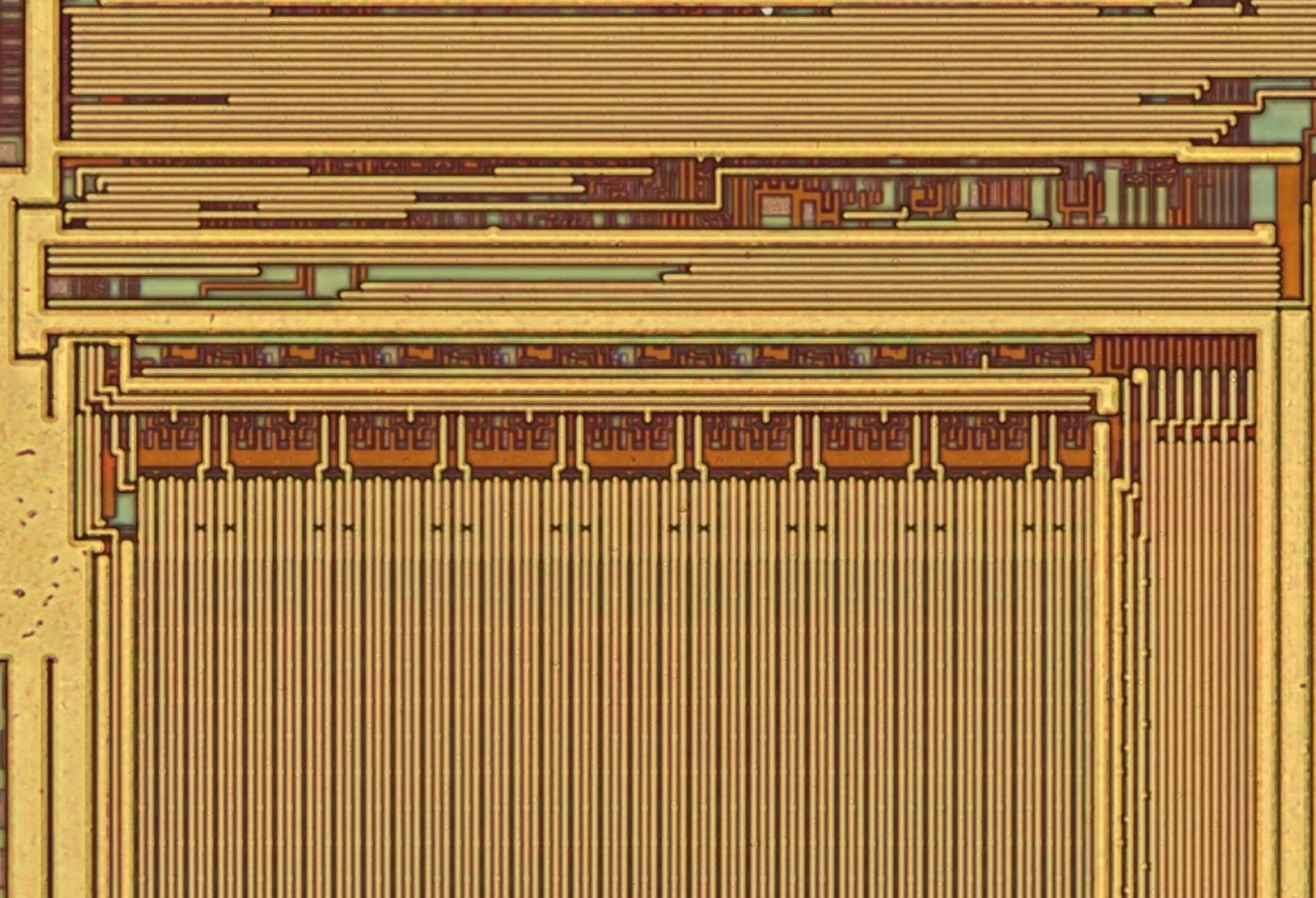

On the topic of memory blocks, it seems there are two distinct IP sets on this die. The top half differs significantly from the bottom half. For example, here is what I believe to be SRAM, top vs bottom.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

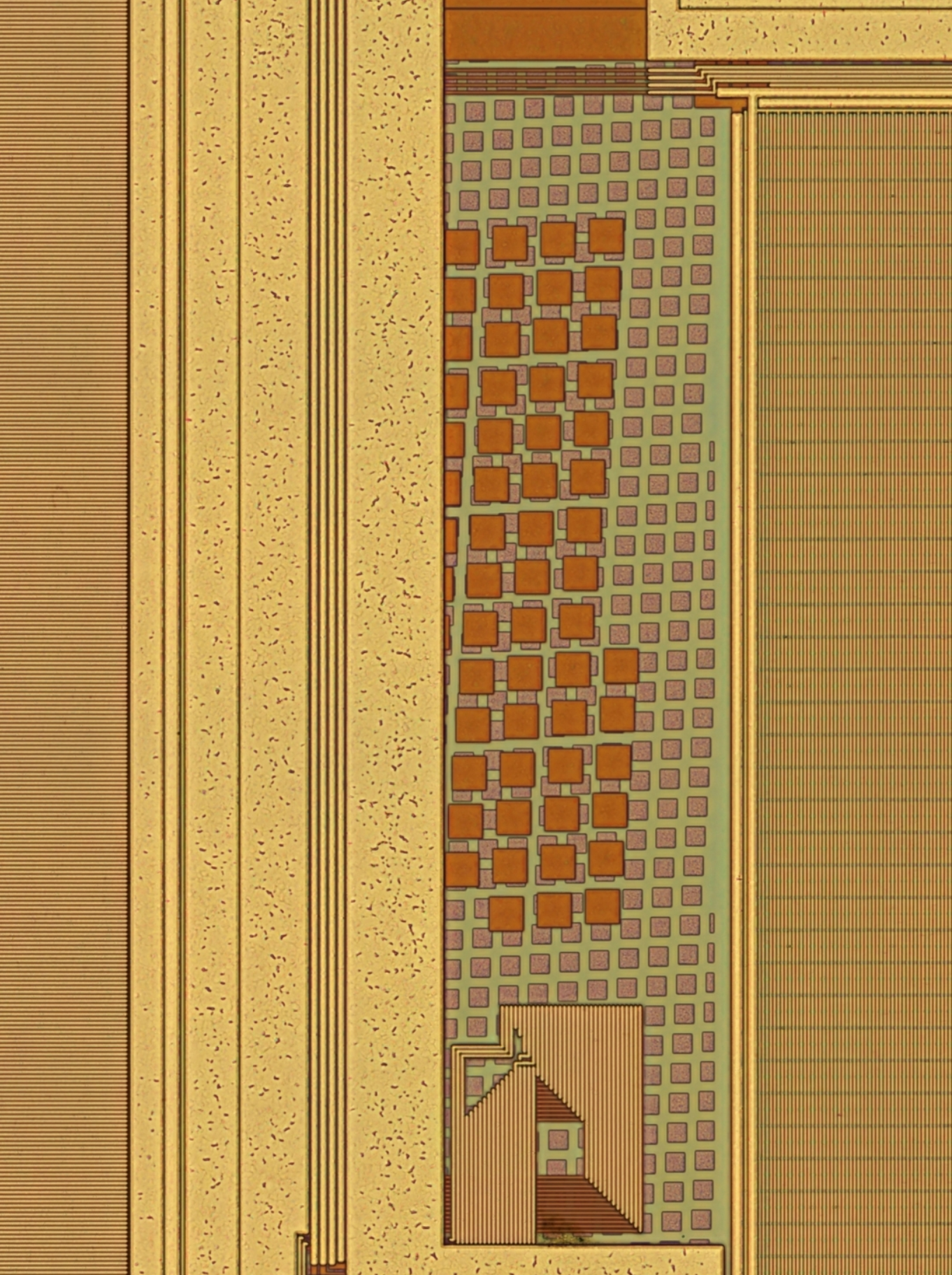

The most prominent feature, however, is... empty space at the right. There used to be *something* in there -- there is a bus routed to the empty space. I wonder what it was? More memory with extra features?

0

2

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

Mask ID corner! Funny how this is P8085-A.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @infosecdj@infosec.exchange

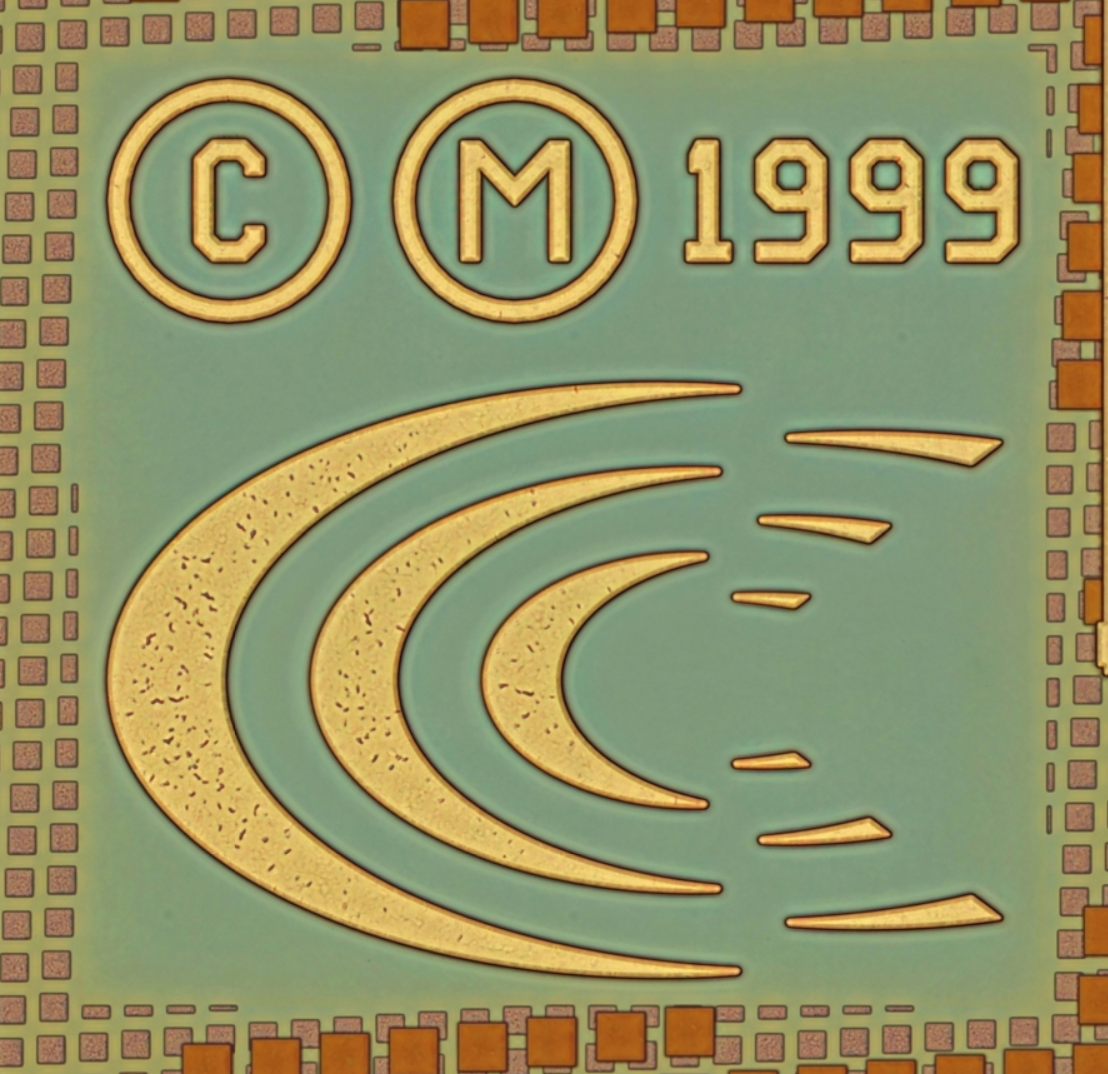

We do have a logo, and it is Conexant proper -- not Rockwell.

0

1

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Hello, how are you doing? This is #NakedDieFriday speaking, and today's post is the continuation of the one from last week. It is the second die out of Conexant FM336PLUS, a modem chip. Unfortunately, there was some trash on the die which I could not remove. The die is larger than the other one and appears to be fully digital. There are a lot of memory blocks as well. Let's have a more detailed look. Full-res map: http://infosecdj.net/map/conexant/fm336plus-b/infosecdj_mz_nikpa40x_66p/ #electronics #reverseengineering #microscopy

3

2

0

DJ🌞

@infosecdj@infosec.exchange · Jul 17, 2026

Replying to @tnt@chaos.social
